Architect a high-availability low-latency inference service for an LLM: Covering Multiple replicas load balancing GPU Utilization

Browse all previoiusly published AI Tutorials here.

Table of Contents

• Architecting a High-Availability Low-Latency LLaMA 3 Inference Service on Cloud

• Multiple Replicas and Load Balancing

• GPU Utilization and Optimization

• Autoscaling Strategies

• Caching Mechanisms for Inference Efficiency

• Use Case Optimizations

  • Real-Time Chat Applications

  • Batch Processing and Throughput Workloads

• Cost vs Performance Optimization

  • Techniques to Minimize Cost

  • Techniques to Maximize Performance

• Security and Compliance Considerations

• Framework Considerations TensorFlow PyTorch and vLLM

  • TensorFlow Serving XLA and TensorRT integration

  • PyTorch and Hugging Face Ecosystem

  • vLLM Inference Engine

Architecting a High-Availability Low-Latency LLaMA 3 Inference Service on Cloud

Large Language Models like LLaMA 3 demand significant compute and memory resources in production. Deploying such models on cloud platforms (AWS, GCP, Azure) requires careful architecture to ensure high availability and low inference latency under varying loads. Key challenges include the enormous memory footprint of model parameters and attention caches, and the sequential (autoregressive) nature of generation that limits parallelism (Azure OpenAI Best Practices) . This report reviews best practices and recent advances for serving LLaMA 3 at scale, covering multi-replica deployments, GPU optimization, autoscaling, caching, use-case-specific tweaks, cost-performance trade-offs, security, and framework-specific considerations. Modern inference systems employ numerous optimizations – continuous batching, parallelism strategies, KV-cache management, speculative decoding, etc. – to balance throughput and latency (Optimizing LLM Inference Throughput via Memory-aware and SLA-constrained Dynamic Batching). The following sections detail an architecture blueprint and techniques for efficient LLaMA 3 inference on cloud infrastructure, with inline citations from 2024–2025 literature and industry sources.

Multiple Replicas and Load Balancing

To serve many users and ensure reliability, one must deploy multiple instances (replicas) of the LLaMA 3 model and distribute incoming requests among them. A load balancer (e.g. AWS Application Load Balancer or GCP Cloud Load Balancing) routes client requests to healthy backend instances, preventing any single node from becoming a bottleneck or point of failure. In practice, each replica can be a container or VM running the LLaMA model on one or more GPUs. For horizontal scaling, identical model replicas run in parallel so that if one instance is busy or fails, others can handle traffic. This setup improves availability (uptime) and throughput by leveraging additional nodes (LLM Inference Serving: Survey of Recent Advances and Opportunities) .

Load balancing strategies typically include round-robin distribution, or more advanced methods like least-loaded routing (sending requests to the instance with the most free GPU memory or shortest queue). In cloud-managed services, this is often abstracted: for example, AWS SageMaker Endpoints and Azure Machine Learning Endpoints automatically perform load balancing across deployed replicas. In a Kubernetes cluster (EKS, GKE, AKS), a Service or Ingress (with an external IP) can spread requests across Pods running the model. It’s important that instances are stateless, meaning each inference request carries all context it needs (the prompt and any conversation history) so it can be handled by any replica. Stateless design allows free load balancing without “sticking” a user to one server. If session-specific state must be kept (e.g. cached conversation context), consider an external store or make use of intelligent routing – but generally LLM serving treats each request independently.

Scaling LLaMA 3 beyond one GPU: If the model is too large to fit on a single GPU (which is likely for LLaMA 3, assumed to be larger than LLaMA 2), you can partition it across multiple GPUs or even multiple nodes. In such model-parallel deployments, each logical model instance consists of shards on N GPUs. All shards must be available to serve a request, so they operate in unison. This is achieved via libraries like NVIDIA’s TensorRT-LLM and Triton Inference Server which support multi-GPU, multi-node inference with message passing (Scaling your LLM inference workloads: multi-node deployment with TensorRT-LLM and Triton on Amazon EKS | AWS HPC Blog) . For example, a 405B-parameter LLaMA 3 model can be sharded across two or more high-memory GPUs, effectively treating them as one combined engine at inference time . If using Kubernetes, a custom controller (like the open-source LeaderWorkerSet for Triton) can manage such superpods – groups of pods across nodes that together host one model replica . In this case, your load balancer would route each incoming request to one superpod (which then coordinates internally among leader/worker processes to generate the output).

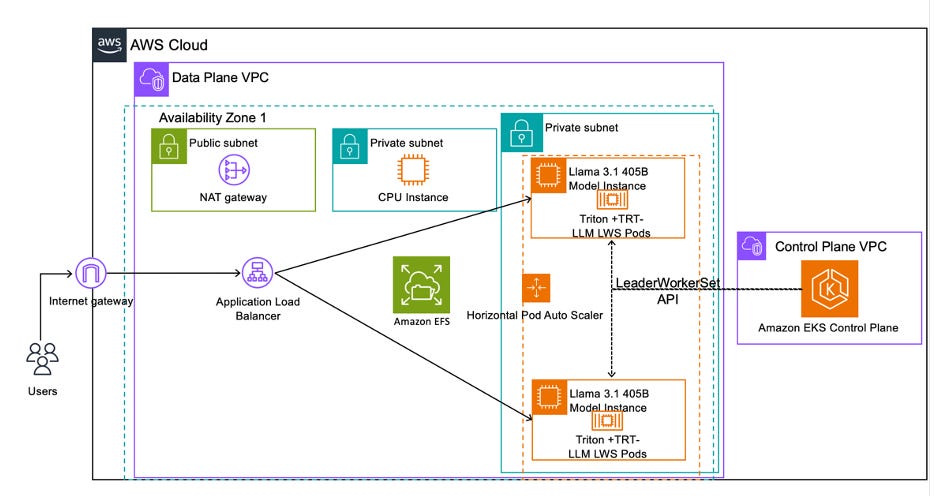

High-level architecture of a multi-node LLM inference deployment on AWS. In this example, an AWS EKS cluster runs two GPU instances (each a p5.48xlarge) hosting a LLaMA 3.1–405B model partitioned across nodes (using a leader–worker setup). An Application Load Balancer routes incoming requests from users to an available model superpod (a group of pods spanning the two GPU nodes) . A Horizontal Pod Autoscaler adds/removes these model instances based on load, and a Cluster Autoscaler can provision new GPU nodes when needed . High-speed interconnect (Elastic Fabric Adapter) links the GPUs for low-latency communication , and shared storage (Amazon EFS) provides a common filesystem (e.g. for model weights). This architecture ensures high availability (multiple replicas and failover), while supporting the immense resource needs of a large LLM via distributed inference.

In summary, deploying multiple LLaMA 3 replicas behind a load balancer provides resiliency and scale. Best practices include using health checks (to route around unresponsive instances), spreading replicas across availability zones for fault tolerance, and monitoring instance load to prevent latency spikes. As demand grows, new instances (or pods) can be brought online to increase capacity. The system should also be designed to gracefully handle instance restarts or replacements (for example, using rolling updates so that at least N-1 instances remain serving at any time for zero-downtime deployments).

GPU Utilization and Optimization

Optimizing GPU utilization is critical for low latency and cost-effective LLM inference. Modern GPUs are extremely powerful, and a naive approach that serves one request at a time per GPU can leave a lot of capacity unused (LLM Inference Serving: Survey of Recent Advances and Opportunities) . Key techniques to maximize GPU throughput while keeping latency low include request batching, parallelism, and efficient memory management:

• Dynamic Batching and Concurrency: Combining multiple inference requests into a single batch can significantly increase GPU utilization by parallelizing computation across the batch. However, in LLMs, different requests often produce outputs of varying lengths; if batched naively, shorter sequences would have to wait for longer ones, wasting computation and increasing latency for the short queries . To address this, continuous batching at the token-level is used. Rather than waiting for all prompts in a batch to complete, the system can continuously add new requests to the batch whenever a slot frees up (e.g. when one sequence finishes) . This fine-grained scheduling keeps GPUs at high occupancy without forcing all requests to finish together. In fact, continuous token-level batching has become an industry standard, implemented in high-performance inference servers like Hugging Face TGI, vLLM, and NVIDIA TensorRT-LLM . Google’s PaLM serving and OpenAI’s systems similarly intermix multiple requests on the same hardware to balance utilization. The result is that many requests can be served in parallel, each advancing token by token in a round-robin fashion, which dramatically improves throughput with only minimal added latency per request (often just a few milliseconds of scheduling overhead).

• Sequence Grouping: To further avoid the “long request holds up short request” issue, some strategies predict or constrain output lengths. Research prototypes have used a small model to predict each query’s likely output length and then batch together queries of similar lengths (LLM Inference Serving: Survey of Recent Advances and Opportunities). If the predictor is wrong and a sequence exceeds its estimate, it can be preempted and re-scheduled separately . This length-aware batching can reduce wasted computation. In practice, pure length prediction is hard to generalize, so continuous batching is preferred, but production systems may still maintain separate batch queues for short vs long requests to minimize latency impact. For instance, an inference service might direct prompts under a certain token length to a fast-path batch and send very large requests to a separate worker pool.

• GPU Memory Optimization: LLaMA 3 will have a massive memory footprint (potentially tens of GB just for weights, plus additional memory for activations and attention caches). Efficient memory management is thus essential. One widely adopted technique is PagedAttention, which treats the attention key/value (KV) cache as a pageable memory region rather than one large contiguous block . Instead of pre-allocating a worst-case cache size, PagedAttention allocates memory in smaller pages and reuses them, significantly reducing fragmentation and waste . This approach became the norm in many serving frameworks – it’s built into HuggingFace Text Generation Inference, vLLM, and TensorRT-LLM . A newer alternative, vAttention, uses virtual memory to keep the KV cache contiguous in virtual address space while physically allocating on demand (leveraging OS demand paging) . This can simplify memory handling and overlap GPU memory allocation with computation to hide latency . The takeaway is that careful KV cache management allows more concurrent sequences to reside on the GPU without running out of memory or incurring large allocation delays.

• Precision and Model Size: Running LLaMA 3 with lower numerical precision can drastically cut memory usage and increase speed. Using FP16 or BF16 (instead of FP32) is standard for LLM inference, effectively halving memory per parameter with negligible quality impact. Many LLMs also support 8-bit or 4-bit quantization, which can further reduce GPU memory needs (at some cost to output quality). For example, vLLM supports quantized KV caches to shrink memory footprint (Distributed Inference With vLLM - Neural Magic). Quantization and weight pruning are key to fitting models on smaller GPUs or allowing more instances per GPU. However, aggressive quantization (like 4-bit) might slightly increase latency due to dequantization overhead or lower GPU utilization (if specialized instructions aren’t fully used). It’s a balance between memory saved and potential extra compute. Still, quantization is a powerful tool for cost reduction and scaling, and frameworks like TensorRT, DeepSpeed, and Hugging Face Accelerate provide out-of-the-box support for int8 execution of LLMs.

• Parallelism: Modern serving stacks use multiple forms of parallelism. Data parallelism is simply running independent requests on different devices (achieved via replication, as discussed). Model parallelism splits the model across GPUs – for example, tensor parallelism divides the weight matrices so each GPU holds a slice and computes part of every layer (Mastering LLM Techniques: Inference Optimization | NVIDIA Technical Blog) . This is necessary for extremely large models that can’t fit in one GPU’s memory. Techniques like tensor, pipeline, and sequence parallelism (as pioneered in Megatron-LM) allow distributing a single inference forward-pass across multiple GPUs to reduce per-GPU memory load . For instance, two-way tensor parallelism splits the attention heads across two GPUs, halving memory per GPU . These parallelism strategies are not exclusive – they can be combined to scale to dozens of GPUs if needed . The downside is added cross-GPU communication which can hurt latency. For LLaMA 3, one might use 2–4 GPUs with high-bandwidth interconnect (e.g. NVLink or NVSwitch) to keep latency reasonable. The AWS example above uses NCCL/MPI to coordinate inference across GPUs and nodes, introducing a small overhead (a few milliseconds) that is acceptable given the model’s size (Scaling your LLM inference workloads: multi-node deployment with TensorRT-LLM and Triton on Amazon EKS | AWS HPC Blog) .



  In summary, multi-GPU inference is feasible and often required for the largest models, but it demands efficient parallel algorithms and networking to avoid bottlenecks.

• Hardware Utilization: To maximize throughput, ensure you leverage GPU features like asynchronous execution, streams, and concurrency. Many inference servers run a dedicated thread per GPU and use non-blocking CUDA streams to overlap data transfer and compute. If using NVIDIA GPUs, enable Tensor Cores (via FP16/BF16) and techniques like FlashAttention (an optimized attention kernel that reduces memory and speeds up long-sequence attention). FlashAttention and fused kernels (combining multiple small GPU ops into one kernel launch) can significantly speed up inference, especially for long contexts (Optimizing LLM Inference Throughput via Memory-aware and SLA-constrained Dynamic Batching). These low-level optimizations are typically handled by libraries (e.g. xFormers, Apex, or the vendor’s runtime). It’s also crucial to monitor GPU utilization metrics: if the GPU isn’t near 100% utilization during inference bursts, your batching or concurrency settings may need tuning.

• MIG and Multi-tenancy: On NVIDIA A100/H100 GPUs, Multi-Instance GPU (MIG) can partition a single physical GPU into smaller logical GPUs with isolated memory and compute slices. This can be useful if you want to serve multiple smaller models or different tasks on one GPU without interference. For a single large LLM like LLaMA 3, MIG is less directly useful (since the model likely needs the full GPU), but for hosting a scaled-down version or multiple replicas of a smaller variant, MIG could improve overall utilization by enforcing better resource sharing. Similarly, one can run multiple model processes on the same GPU if memory allows, to keep the device busy – though context-switching overhead and memory contention must be managed.

In practice, achieving low latency means using just enough batch size to keep hardware busy but not so much that it adds queueing delay. There’s a trade-off between throughput and latency: serving one request at a time is lowest latency for that request but wastes capacity; huge batches maximize tokens/sec but any given request waits longer. State-of-the-art systems employ adaptive batching, adjusting batch size on the fly based on current load and latency targets (Optimizing LLM Inference Throughput via Memory-aware and SLA-constrained Dynamic Batching) . Recent research by Pang et al. (2024) introduces a memory-aware, SLA-constrained dynamic batching that monitors GPU memory and latency against a target SLA, then automatically tunes batch size in real time . Such intelligent schedulers can yield ~8–28% throughput gains while meeting latency requirements by “right-sizing” the batch per moment . In summary, to fully utilize GPUs for LLaMA 3 inference: use concurrent request batching with token-level scheduling, optimize memory (KV cache) usage, exploit lower precision and faster kernels, and consider parallelism across multiple GPUs if needed. These ensure each GPU delivers maximum performance for both single-query latency and aggregate throughput.

Autoscaling Strategies

Autoscaling is essential to handle variable traffic patterns without over-provisioning resources. In an LLM inference service, request load can be spiky – for example, a viral event might drive a huge surge of users to a chatbot, then drop off. Cloud platforms provide mechanisms to dynamically scale the number of running instances (horizontal scaling) or their size (vertical scaling) based on demand. The goal is to always have enough capacity to serve current load with low latency, but no more than necessary (to control costs).

Horizontal Pod/Instance Scaling: All major cloud providers allow scaling out the number of replicas in response to metrics. On Kubernetes, the Horizontal Pod Autoscaler (HPA) can monitor metrics like CPU utilization, GPU utilization (via device plugins or custom metrics), or even application-level metrics (like requests per second or queue length). When the metric exceeds a threshold, the HPA will add more pods (each running a model server); when it falls below a lower bound, it will terminate some pods. A common metric for ML serving is GPU memory or compute utilization, but these can be tricky since an idle model might still have full GPU memory allocated. Instead, a good proxy is request queue size or throughput. For instance, NVIDIA’s Triton Inference Server exports metrics like the number of in-flight requests and compute time, which can be scraped by Prometheus and fed to an HPA. In the AWS reference, they configure Prometheus rules to derive a queue_compute_ratio metric and use that for the HPA, ensuring new pods spin up before the queue grows too long (Scaling your LLM inference workloads: multi-node deployment with TensorRT-LLM and Triton on Amazon EKS | AWS HPC Blog). AWS’s solution scales at two levels: an HPA launches new superpod deployments (model instances) and if those cannot be scheduled (due to lack of nodes), the Kubernetes Cluster Autoscaler (CAS) will provision new GPU nodes to host them . This two-tier autoscaling (pods then nodes) allows practically unlimited scaling as needed. Similarly, on GCP’s Vertex AI or GKE, one can use HPA for pods and cluster autoscaler for node pools with GPU instances. Azure’s equivalent is VM Scale Sets or AKS node auto-provisioning combined with their custom autoscaler.

A key consideration is scale-up latency: loading a LLaMA 3 model onto a GPU can take tens of seconds (due to model weight size). If you scale out reactively when traffic has already spiked, some requests may experience high latency or time out while new instances are still initializing. To mitigate this, one approach is to maintain a buffer of warm instances (always keep N free capacity headroom), or use predictive autoscaling (scale out in anticipation of known traffic patterns, e.g. based on time of day or marketing events). Another approach is fast loading techniques: research from Microsoft on ServerlessLLM discusses a specialized loading system and checkpoint format that speeds up model startup, plus live migration of requests to new instances seamlessly (LLM Inference Serving: Survey of Recent Advances and Opportunities) . By dumping model state at a token level and reloading it in a new process, they can reduce the cold-start penalty for LLM services . In practice, some frameworks use weight quantization or lazy loading (loading layers on demand) to start serving sooner.

Scale-to-zero and Serverless: In low-traffic scenarios, you may not want any GPU running (to save cost). Serverless inference services aim to scale instances down to 0 when idle and spin up on request. AWS Lambda doesn’t support large GPU models directly, but AWS has introduced features like Lambda GPU support (for smaller models) and serverless Kubernetes (EKS on Fargate with GPUs). Google Cloud Run and Azure Functions similarly have limited GPU options. However, true serverless LLM hosting is challenging due to the cold-start times mentioned. If implementing a scale-to-zero, one must accept that the first request after idle will incur a high latency (could be 30+ seconds to load LLaMA 3). ServerlessLLM research specifically addresses cold start by using GPU memory to cache model state even when an instance is “idle” so that restarting it is faster . Azure’s container apps and GCP’s serverless platforms currently suggest keeping at least one instance warm for models of this size.

A more viable pattern is event-driven scaling with a minimum replica count of 1 (to always have one warm instance). Then, scale up to N based on load, and scale down back to 1 (but not zero) during idle periods. This avoids complete cold starts while still saving cost at low load. If absolutely no traffic is expected for long periods, one could snapshot the model to disk and shut everything, then accept that the next request will pay a cold load penalty (possibly informing the user of a slight delay).

Autoscaling policies: It’s important to configure cooldown periods and avoidance of thrashing. For instance, after scaling down, if a new burst comes in a minute later, you don’t want to constantly spin up and down (causing repeated loading). Set autoscaler cooldown times to ensure a stable scale-down. Also, enforce upper limits to avoid runaway scaling in case of a traffic spike that could blow out budget – ideally, have a circuit breaker or queue-backpressure if load exceeds a certain multiple of capacity while new instances catch up.

Another dimension is geographical autoscaling: if serving a global user base, you might deploy LLaMA 3 in multiple regions (USA, Europe, Asia, etc.). You can route traffic via a global load balancer or DNS to the nearest region. Each region can autoscale independently based on its local traffic. This not only improves latency (serving users from closer data centers) but also provides higher availability (if one region goes down, others can pick up some traffic). Cloud providers support this via traffic director services or anycast global endpoints.

Autoscaling for Cost Efficiency: Using spot instances or preemptible VMs for some of the load can drastically cut costs (often 50-90% cheaper), with the trade-off that they can terminate unexpectedly. If your autoscaler can gracefully handle VM interruptions (e.g. by quickly replacing a lost instance and having enough redundancy), this can be a big win. There is research called SpotServe that looks at using spot instances for LLM inference – it implements a stateful inference recovery so that if a spot VM running a model is terminated, the in-progress request’s state is saved and resumed on another instance (LLM Inference Serving: Survey of Recent Advances and Opportunities). It reports strategies to minimize disruption when using transient cheaper instances for serving LLMs . In practice, you might blend on-demand and spot: keep a baseline of on-demand instances for reliability and add extra capacity with spot VMs for surges.

Finally, consider autoscaling for different model sizes if applicable. For example, you could dynamically switch to a distill or smaller model under heavy load if ultra-low latency is less critical than staying within budget. Some services might route requests to a faster, smaller model when the main model is saturated (with an appropriate notice or trade-off in quality). This is a form of graceful degradation.

In summary, autoscaling LLaMA 3 in production involves a combination of: horizontal scaling based on real-time metrics, fast instance startup techniques to reduce cold starts, possibly maintaining a minimal warm pool, and leveraging cloud auto-scalers for both pods and nodes. When done well, the system can handle 10x or 100x swings in load while keeping latency within SLA and optimizing cost. Autoscaling ensures you pay for GPU time only when needed and that your users experience consistently fast responses.

Caching Mechanisms for Inference Efficiency

Caching is a powerful technique to avoid redundant computation in LLM inference. There are several forms of caching relevant to a LLaMA 3 service:

• Attention KV Cache (Within-request): During autoregressive generation, the model accumulates a key/value cache for attention layers – storing representations of all past tokens so it doesn’t recompute them from scratch for each new token. This cache is intrinsic to the transformer and all modern implementations use it to speed up inference. While this is internal, its efficient management is crucial (discussed earlier with PagedAttention and vAttention). The KV cache means that generating a long output incrementally is much faster than feeding the entire prompt plus generated prefix each time. However, this cache typically lives only in memory during that request’s lifespan.

• Session Cache (Multi-turn Conversations): In a chat application, users have multi-turn dialogues with the LLM. Often, the model sees the entire conversation history as part of the prompt for each new user message. Naively, the model would recompute all the earlier tokens’ embeddings and attention for every turn – this is the so-called prefill cost for the prompt tokens. Caching can help here: the KV states corresponding to the conversation history can be stored so that when the user sends the next message, the service can resume from the end of the last turn instead of starting over. One approach is to keep the session’s KV cache in GPU memory between requests, but this ties up GPU RAM even when the user is idle (which might not scale if many sessions). Projects like AttentionStore address this by offloading inactive session caches to CPU memory or disk, and prefetching them back when the session resumes (LLM Inference Serving: Survey of Recent Advances and Opportunities). AttentionStore essentially treats the KV cache as a pageable object that can be evicted from GPU when not in use and restored efficiently, so the user doesn’t pay the full cost of recomputing a long chat history after a pause . This kind of caching is complex to implement but can drastically improve responsiveness in chat apps, especially if users have intermittent conversations where each query is short but context is large.

• Prompt Caching and Prefix Reuse: Some applications might issue many queries with a shared prompt prefix. For example, if you have a system prompt or instructions that are common across requests (like a fixed persona or guidelines), you can pre-compute the transformer states for that prefix once, and reuse it for subsequent requests. PromptCache is a technique that asks users to structure prompts in modular chunks so that common chunks (like a standard system prompt, or a long document that many questions will be asked about) are identified and their internal states cached . Then, when a new query comes that includes that chunk, the service can skip directly to computing from the end of the cached prefix. In essence, the model’s first N layers outputs for the prefix are stored. This requires identical token sequences to appear, so it’s most useful when you have repetitive prefixes (e.g., maybe an agent that always prepends the same few paragraphs of instructions, or multiple users querying about the same document). With LLaMA 3, if the model is used in a retrieval-augmented setting, one could cache vector embeddings of documents or intermediate decoder states for frequently accessed documents.

• Result Caching (Output Cache): Caching the final outputs of the model for identical inputs is another straightforward approach. If the exact same question is asked repeatedly, and the generation is deterministic (temperature 0 and no randomness), the answer will be the same. A cache at the API level can return the stored answer immediately. This is essentially memoization of the model’s function. However, for an interactive LLM with non-deterministic sampling, identical prompts might yield different responses, so output caching is less applicable unless you fix the random seed or only cache when using deterministic mode. Additionally, storage and lookup of potentially large outputs (and many possible queries) is non-trivial. This technique may be more relevant for batch inference on recurring inputs (see Batch Processing use-case) or for smaller utility models (like an embeddings service caching embeddings for previously seen texts).

• Multi-level Cache: In practice, implementing caching may involve multiple tiers: a fast in-memory cache for recent items, a slower but larger disk or database cache for older items, and logic to determine cache hits. One must also consider cache invalidation – for example, if the model is updated or fine-tuned, previously cached outputs or states might become stale or invalid, so caches should be versioned or cleared accordingly.

• Framework support: The vLLM inference engine is built with caching in mind. It introduces prefix caching and chunked prefill as first-class features (Distributed Inference With vLLM - Neural Magic). This means vLLM can take a long prompt, break it into chunks, and intermix the processing of those chunks with other requests (improving throughput), while also reusing any shared prefix between requests. For example, if two requests share the first 50 tokens, vLLM will compute those 50 tokens’ transforms once and then branch out to handle the divergence, rather than doing it twice. By managing an efficient data structure for the KV cache pages, vLLM enables such reuse with minimal overhead. It also supports KV cache quantization (to compress the cache in memory) which indirectly acts as a cache size booster . Tools like DeepSpeed’s inference engine and HuggingFace’s TGI similarly optimize prompt reuse and cache management under the hood.

The benefit of caching is improved latency (avoid recomputation) and throughput (free up compute for new tasks). One reported drawback is increased system complexity – e.g., PagedAttention added some overhead and complexity in managing the memory, leading to research into alternatives like vAttention to simplify it (LLM Inference Serving: Survey of Recent Advances and Opportunities). But for production, the performance gains often outweigh the cost.

For LLaMA 3 specifically, consider that the model is likely used in long-form conversations or content generation with long prompts. Caching the initial prompt encoding (which might be a system message describing behavior) can save a few hundred milliseconds on each request. In batched or ensemble scenarios, if you have multiple models working together (like a smaller model guiding a larger model), caching intermediate results between them could also help.

In summary, caching mechanisms in LLM inference range from low-level (KV cache memory management) to high-level (memoizing query responses). They contribute to low latency by leveraging work already done. When designing an inference service, it’s worth identifying opportunities for reuse: Is there a common prefix across requests? Are users repeating questions? Can we persist conversation state between turns? By incorporating caching at those points, one can significantly boost efficiency. Just be mindful of cache consistency (invalidate when needed) and memory overhead (don’t let caches grow without bound – use LRU policies or limits, possibly as AttentionStore does with intelligent eviction (LLM Inference Serving: Survey of Recent Advances and Opportunities)).

Use Case Optimizations

Real-Time Chat Applications

Interactive chat is a prime use case for LLaMA 3, requiring low latency per user message to feel responsive. Users expect near-instantaneous answers in a conversational UI. Achieving this involves optimizing for minimal end-to-end latency rather than maximum throughput. Some specific strategies for chat scenarios:

• Low Latency Mode vs Throughput Mode: Configure the serving system to prioritize latency. This can mean using smaller batch sizes or even single-batch processing for each request, especially if concurrent load is low. It can also involve reserving one or more model replicas exclusively for real-time queries (to avoid them getting batched behind large jobs). For example, you might dedicate some GPU instances to handle chat sessions with aggressive autoscaling, while other instances handle batch jobs in parallel (so that a spike in batch processing doesn’t queue behind it and slow down chat responses).

• Token Streaming: Rather than waiting for the model to generate the entire answer, the service should stream tokens to the user as they are produced. All major LLM APIs (OpenAI, etc.) do this for chat – the model starts outputting the first token after processing the prompt, and sends it immediately, then the next, and so on. Streaming provides the user feedback that the answer is coming and significantly improves perceived latency. Technically, this means your server needs to handle sending partial responses (over websockets or chunked HTTP responses) and your client UI should render text incrementally. LLaMA 3, like other transformer models, can generate token-by-token, so enabling streaming is mostly a matter of choosing an API protocol that supports it.

• Maximizing Parallelism in Decoding: The autoregressive nature is a serial process, but some research attempts to parallelize it. Speculative decoding is one such technique where a smaller “draft” model generates a batch of tokens in parallel, and the larger model then validates or corrects them, thereby accelerating the overall decoding (TensorRT-LLM Speculative Decoding Boosts Inference Throughput by up to 3.6x | NVIDIA Technical Blog) . NVIDIA reports over 3x speedup in tokens/sec by using speculative decoding for a 405B Llama model, with negligible quality loss . Essentially, the big model doesn’t have to generate every token one-by-one – it can skip ahead using the draft model’s suggestion and only backtrack if necessary. For chat, where latency is critical, implementing speculative decoding can cut down the time to generate a full response. Framework support for this is growing (TensorRT-LLM added support for speculative decoding in late 2024 ). This is especially useful when the model tends to produce long answers; the first few tokens might come normally, and then a chunk can be speculatively jumped through.

• Shorten Inputs and Caching: In a long-running chat, the conversation history grows, increasing the prompt length and thus latency each turn. Mitigate this by using strategies like history summarization or truncation. Many production chatbots summarize older parts of the conversation or employ a sliding window of recent messages, to keep the prompt length manageable. This is more of an application-level solution but directly impacts inference time (shorter prompt = faster prefill). Additionally, as noted in caching, reusing the encoded state of the conversation so far (session cache) means each new user message only requires processing that new message plus a short summary of history, rather than the full history every time. This can drastically reduce latency in later turns of a chat.

• Adaptive Generation Settings: For real-time use, consider using slightly greedy decoding (higher top_p or lower max_new_tokens) to limit very long-winded answers unless needed. If you cap the maximum answer length, you cap the worst-case latency. Some systems even let users pick a speed vs thoroughness setting (trading off answer length/quality for speed). From a system perspective, enforcing reasonable token limits per response (like say 256 tokens) means the model won’t run for too long on one query. If a user asks something that requires a longer answer, you might send what you have and offer to continue if they prompt again.

• SLA and QoS: In multi-user chat service, you might need to ensure no single user’s long query starves others. Having an SLA (e.g., P95 latency < 2 seconds) and building scheduling to enforce it is useful. Some solutions include prioritizing interactive requests over batch ones (as mentioned) and potentially preempting extremely long generations. For instance, if one user’s response is already 1000 tokens and still going, you could cut it off and send a message like “[Message truncated]” or continue asynchronously, to free the model for others. This depends on product requirements but is a consideration for keeping latency low for all.

• Concurrent Sessions: For chat, you’ll likely have many simultaneous sessions (each user having a conversation thread). Ensure your infrastructure can handle many contexts. This ties back to caching and memory – you might have hundreds of session caches if hundreds of users are actively chatting. Design limits (like maybe only keep caches for the 100 most recent sessions on GPU, rest on CPU/disk). Also, load balancing can be session-aware: one trick is to use client affinity where the same user’s requests go to the same replica whenever possible, so that you can keep their context in memory on that replica. This avoids shuffling session data around. If using something like a sticky session via a load balancer cookie or a consistent hashing on session ID, it can help utilize caches effectively. The downside is it reduces the uniform distribution of load, but if you have enough users, it averages out, or you allow some overflow to other instances when needed.

Real-time chat emphasizes responsiveness. All the optimizations – small dynamic batches, streaming, context caching, etc. – serve to make each user’s turn-around time as low as possible (ideally a few hundred milliseconds to first token, and perhaps 1–3 seconds for a full moderate-length answer). By also scaling out to meet peak concurrent users, and isolating chat-serving instances from any non-interactive workloads, you can maintain a snappy experience. Many of the techniques discussed earlier (continuous batching, etc.) were motivated by interactive use-cases where latency can’t be sacrificed. For example, the Orca continuous batching approach explicitly aims for low-latency high-throughput by not waiting for batch completion (LLM Inference Serving: Survey of Recent Advances and Opportunities). Likewise, ensuring high availability (multiple replicas) is crucial so that if one node fails mid-conversation, the user’s session can failover or retry on another (perhaps with some recovery of context).

In sum, for real-time chat with LLaMA 3: minimize any overhead per request, leverage streaming and incremental processing, keep context lengths in check via caching or summarization, and prioritize the user-facing latency in your scheduling and scaling decisions.

Batch Processing and Throughput Workloads

In contrast to interactive use, batch processing with LLaMA 3 involves running large volumes of inference jobs where overall throughput (tokens generated per second) matters more than per-request latency. Examples include offline processing of documents (summarizing a batch of reports overnight), running analytics or filtering through an LLM, or serving high-volume API requests where slight latency isn’t user-visible (perhaps tasks queued in a backend). For these scenarios, you can push the system to utilize hardware fully and amortize costs across many tasks.

Key strategies for batch processing optimization:

• Large Batch Inference: Group inputs into sizable batches to maximize GPU utilization. Since we’re less concerned if a single job takes a few seconds longer, we can afford to wait until we have a full batch. This could mean accumulating, say, 32 or 64 requests (or more) before calling the model’s generate function. The throughput (e.g., tokens/sec) can improve significantly with batch size until you saturate the GPU’s compute. Watch out for diminishing returns: beyond a point, a larger batch might not increase tokens/sec due to memory bandwidth limits (LLM Inference Serving: Survey of Recent Advances and Opportunities), and it will linearly add to latency. So find an optimal batch size via benchmarking. Many batch jobs involve relatively short prompts but you might be generating moderate-length outputs for each; combining them ensures the GPU runs multiple sequences in parallel, which is efficient.

• Concurrency and Multi-Stream: If the model or framework supports it, run multiple generation streams on the same GPU in parallel. This is akin to multi-threading the GPU. Some libraries allow launching multiple generation instances that the GPU will time-slice. However, for simplicity, using one process with batches is often easier and already achieves similar utilization. Multi-stream might help if you have heterogeneous sequence lengths – one stream could handle some, another stream others, without waiting.

• Throughput-oriented Scheduling: In batch mode, you can be more relaxed with scheduling latency. You might hold a job queue and only dispatch to GPUs when there’s an optimal batch ready or when a GPU is completely free. Also, you can use backpressure – if the GPU cluster is at capacity, simply let the queue build up (if deadlines allow). This is typical in offline processing systems like data pipelines, where the goal is to finish everything by a certain time, not instantly. By queueing and batching, you increase overall throughput at the expense of individual latency. Many LLM serving systems allow configuring a max batch size and a max wait time for batch – e.g., “wait up to 100ms for more requests to join the batch, up to a max of 32 requests”. For throughput mode, you might use a longer wait (to build bigger batches).

• Pipeline Parallel for Long Sequences: If you need to generate extremely long outputs or handle very long inputs in batch, you could consider pipeline parallelism across GPUs to increase throughput. For example, one GPU could handle the first N layers of the model and the next GPU the remaining layers, so each token’s processing is split. If you then pipeline multiple inputs, at any time one GPU is working on one part of one sequence while the next GPU works on the next part of another sequence, etc., forming an assembly line. This is complex, but it can keep all GPUs busy and improve throughput for giant contexts where a single GPU would be slow. Some research (like TetriInfer and Splitwise) suggests separating the prefill phase from the decode phase and even running them on different hardware for better utilization (LLM Inference Serving: Survey of Recent Advances and Opportunities) . For instance, the prompt processing (prefill) could be done in batches on one set of GPUs, and the decoding of tokens on another set, to avoid interference . In batch jobs, this kind of segregation could increase overall pipeline throughput.

• Parallelizing Independent Jobs: If you have many independent tasks (e.g., summarizing 1000 articles), you can also distribute them across multiple GPUs or nodes concurrently – essentially data parallel execution at the job level. This is trivial if you have N GPUs, just feed each GPU different jobs. The autoscaler can be used to spin up a large number of instances to chew through a batch workload and then scale down when done (like a MapReduce style approach). If latency per item isn’t critical, even CPU instances could be used for some jobs to save cost (though LLaMA 3 on CPU will be very slow; more realistically you’d use smaller models on CPU if needed).

• Stable Deterministic Mode: Batch processing is often done for consistent outputs (e.g., you might be generating dataset labels or offline analysis). Running the model in deterministic mode (fixed random seed or greedy decoding) ensures the results are reproducible and cacheable. You can leverage this by caching any repeated inputs across batch runs (so if some input appears again next week, you skip it because you have it cached from last time). Also, if running on multiple nodes, determinism ensures no variability between runs on different hardware.

• Monitor and Tune Throughput: Use throughput metrics (like tokens/sec or sequences/sec) as your key metric for batch jobs. You might tune GPU clock settings for throughput (some GPUs allow setting application clocks or power modes – e.g., maximizing memory throughput versus compute). If using cloud GPUs, ensure you choose instances with sufficient CPU and IO provisioning, as batch jobs could be bottlenecked by CPU preprocessing or data loading if not careful. Typically, you’d do minimal preprocessing (just tokenization, which is fast), but if you have to load large prompts from storage, make sure to feed them fast enough to the GPUs.

• Multi-instance GPU for smaller jobs: If each individual job is small (e.g., generating 1 sentence responses for thousands of short prompts), one GPU could handle many of them in parallel. MIG (as discussed) or simply running multiple processes on one GPU could increase aggregate throughput in that scenario. Essentially treat one physical GPU as several logical ones to run many tiny batches concurrently. This is a niche case but sometimes relevant if batch tasks are granular.

• Batching with Different Models: Sometimes batch processing might involve calling several models in a pipeline for each input (not just LLaMA). If so, you can parallelize those or batch them separately. For example, if each input requires an embedding from one model and a generation from LLaMA, run the embedding model on CPU or smaller GPU batch for all inputs, then feed into LLaMA. Organize the pipeline to minimize idle times of any component.


Overall, in batch scenarios you embrace high throughput even if tail latency is higher. It’s common to see near 100% GPU utilization with large batches, and the system might achieve, say, thousands of tokens per second generation throughput when processing jobs in bulk. The trade-off is that an individual job might wait in a queue for a bit or run slightly slower due to batching – which is acceptable if there isn’t a user waiting interactively. By adjusting batch sizes and concurrency, you can often find a “sweet spot” that yields the highest throughput on your hardware. Modern inference engines with continuous batching also help here: they will keep feeding the GPU new tasks as soon as any task completes, which naturally maximizes throughput (LLM Inference Serving: Survey of Recent Advances and Opportunities) . DeepSpeed’s Fast-Gen and others build on this with SplitFuse methods to chunk long prompts and mix with short ones to avoid idle time .

One more angle: If batch processing is done on a schedule (e.g., nightly jobs), you can spin up a whole cluster at a specific time, process everything in parallel, then shut it down. Cloud providers often let you reserve instances for specific times or spin up spot instances cheaply when needed. This way you handle batch work cost-efficiently without maintaining a large always-on fleet.

In summary, batch processing optimization for LLaMA 3 means pushing hardware utilization to the max: large batches, high parallelism, relaxed latency requirements, and clever scheduling of jobs to ensure GPUs rarely sit idle. It’s the opposite end of the spectrum from interactive chat – here we care about throughput per dollar and total job completion time, leveraging the full might of the GPUs even if that means each query isn’t returned immediately.

Cost vs Performance Optimization

Deploying LLaMA 3 in the cloud incurs significant cost due to expensive GPU instances. There is a constant balancing act between minimizing costs and maximizing performance. We discuss techniques for each, noting that the optimal solution often requires a hybrid of both approaches depending on business needs.

Techniques to Minimize Cost

1. Right-size and Downscale Hardware: Choose the least expensive hardware that meets your performance requirements. For instance, if LLaMA 3 can run on an older GPU like NVIDIA A100 with sufficient memory, that might be cheaper per hour than the latest H100. Alternatively, consider using more but smaller GPUs (e.g., multiple A10s or T4s) if they are cheaper in aggregate than one giant node – though latency might suffer. Also, prefer spot instances or reserved instances for lower prices. Using spare capacity (spot VMs) can save 70-90% cost, as highlighted by SpotServe which showed leveraging spot instances with checkpoint recovery can drastically cut costs for LLM inference (LLM Inference Serving: Survey of Recent Advances and Opportunities). The caveat is handling interruptions gracefully (by having fallback on-demand instances or quickly rescheduling jobs).

2. Autoscale Aggressively: As discussed in autoscaling, scaling down to zero (or near zero) when idle is a huge cost saver. You don’t want expensive GPUs running 24/7 if traffic is intermittent. Set low minimums and use on-demand autoscaling to only pay for capacity when users are active. One can even integrate predictive scaling to spin down during known low periods (e.g., midnight hours) and back up in the morning. Kubernetes event-driven autoscaling or using cloud functions for sporadic workloads could be considered if latency tolerates it.

3. Model Compression: Train or fine-tune a smaller model that achieves similar results for your domain. If a distilled or quantized version of LLaMA 3 (or a smaller LLaMA variant) can satisfy your use-case with slightly lower quality, it can reduce inference cost dramatically. A 13B model is much cheaper to serve than a 70B model, both in memory and compute. Techniques such as knowledge distillation or low-rank adaptation can produce lightweight models for specific tasks that you can use at inference time when appropriate, thus reserving the big model only for the hardest queries. Many real-world deployments use a two-tier approach: try an efficient model first, and only escalate to the big LLM if needed – saving cost on the easier queries.

4. Efficient Utilization and Multi-Tenancy: Make sure your GPUs are doing useful work as much as possible. Idle time is wasted money. By using multi-tenancy (serving multiple apps or multiple models on the same GPU when load is light), you increase utilization. For example, run LLaMA 3 and a few smaller models on one GPU if each alone would be underutilized. Or share one GPU across multiple endpoints using a scheduler that intermixes their tasks. This way, you pay for one GPU and use it fully rather than paying for several half-utilized ones. However, ensure that multi-tenancy doesn’t degrade performance unpredictably (you might need to pin resources or use MIG to isolate).

5. Limit Output Length and Compute per Request: In a paid service, you might enforce limits like max tokens per request or rate limiting per user. This not only guards against abuse, it directly cuts your worst-case inference time (and thus cost per request). If someone tries to generate a 10k token essay, that could monopolize the GPU for a long time. By limiting to, say, 1k tokens, you cap the cost of that request. Similarly, use moderate decoding settings – very low temperature with nucleus sampling can sometimes lead to looping behavior or extremely lengthy rambling outputs which cost more; having some logic to detect and stop those can save cycles.

6. Spot and Schedule Non-urgent Inference: If you have batch jobs that are not time-sensitive, run them on cheaper instances or at off-peak times. Cloud providers sometimes have lower prices in certain regions or times. There are even concepts of “carbon-aware” or “cost-aware” scheduling – e.g., run heavy jobs at night or in regions where capacity is underutilized. The paper Mélange introduces a framework to automatically choose the most cost-efficient GPU types for a given workload (LLM Inference Serving: Survey of Recent Advances and Opportunities) . It considers request characteristics and finds the cheapest instance type that meets the service-level objective. Using such approaches, you might mix instance types: e.g., use a few high-end GPUs for low-latency needs and a swarm of cheaper GPUs for bulk throughput.

7. Optimize Code and Batch Efficiently: Ensure your implementation is efficient to avoid needing more hardware than necessary. E.g., use optimized libraries (TensorRT, cuBLAS, etc.), avoid Python bottlenecks (serving in C++ or using optimized servers can handle more requests per machine, needing fewer machines). Also, batch across users as much as possible – the more work each GPU does per cycle, the more cost is amortized. If you find your GPU at 30% utilization most of the time, that’s money left on the table; reconfigure to increase that, or consolidate workloads onto fewer GPUs.

8. Cloud-specific Savings: Take advantage of any cloud-specific programs: committed use discounts (if you know you’ll run long-term, commit to 1-year or 3-year for lower rates), custom instances (AWS for example has Inf1/Inf2 with Inferentia chips – not applicable to LLaMA unless you convert the model, but could be in future), or GPU share marketplaces. Also monitor and optimize network egress – if you’re sending a lot of data out, that can cost money too, so keep responses succinct unless needed (which aligns with limiting output length).

It’s worth noting that the cost of LLM inference has been dropping rapidly as both hardware and algorithms improve – one analysis dubbed “LLMflation” observes a 10x reduction in cost per unit of performance each year since 2021 (Welcome to LLMflation - LLM inference cost is going down fast ⬇️ | Andreessen Horowitz). This comes from newer GPUs (more throughput per dollar) and better software (optimizations like 8-bit inference, better batching, etc.). So revisiting your setup periodically can yield cost savings – e.g., moving from A100 to H100 might let you serve 2x the load with the same cost, or new libraries might cut memory usage so you need fewer nodes.

Techniques to Maximize Performance

If ultra-low latency and high performance are the top priority (e.g., for a premium service or mission-critical application), you may opt to invest more in optimization and hardware:

1. High-End GPUs and Hardware: Use the latest GPUs (NVIDIA H100, A100 80GB, etc.) which have faster memory, more Tensor cores, and larger memory to hold LLaMA 3 fully. These can reduce latency by running the model faster and avoiding offloading. Also consider NVLink or NVSwitch connected GPU servers for multi-GPU setups to minimize communication overhead. In extreme cases, dedicated hardware like TPUs (if LLaMA 3 can be converted to run on TPU via JAX/TF) or emerging LLM accelerators could be used for maximum speed. Essentially, throwing top-of-line hardware at the problem – while expensive – might be justified if it achieves latency that lower-tier GPUs can’t reach.

2. Scaling Out for Parallelism: If one GPU is not fast enough for generating a long response quickly, you can split the workload. For instance, pipeline across two GPUs to almost halve the latency (one processes first half of layers, second processes second half concurrently – this can cut end-to-end time if done carefully). Or run multiple copies and use ensemble or multi-output methods to generate multiple tokens concurrently (though normally ensembles are for quality, not speed). Another trick: run the model with multiple beams in parallel (for beam search) then return the best – you effectively do more in parallel to finish in the same number of steps (this is more relevant to certain decoding strategies).

3. Speculative and Advanced Decoding: We mentioned speculative decoding which can yield big speedups by leveraging a small model’s speed. That’s a performance-first strategy (it uses more total compute – two models – to get result faster, which might cost more, but increases performance). Also, techniques like multi-query attention (MQA) reduce the memory overhead of multi-head attention by sharing keys/values across heads, which can speed up generation when many threads are present (Mastering LLM Techniques: Inference Optimization | NVIDIA Technical Blog) . LLaMA 2 already used MQA to optimize inference; LLaMA 3 may as well. Ensuring such architectural optimizations are enabled yields lower latency.

4. Fused and Optimized Kernels: Use specialized inference runtimes (TensorRT, ONNX Runtime, Intel Neural Compressor, etc.) to get highly optimized assembly for the model. Fused kernels (combining layer norm, attention, matrix ops into one) can remove a lot of launch overhead and memory copies. Also set the GPU to maximum clocks (Power Mode P0 on Nvidia) to shave off milliseconds. If your environment allows, running in persistent GPU contexts (not releasing CUDA context) also avoids re-initialization delays. These are micro-optimizations that together can improve raw inference speed by maybe 10-20%.

5. Reduction of Overhead: Design the service for minimal overhead around the model inference. If you need to process input/output (like formatting, or moderate post-processing), ensure it’s efficient (possibly offloaded to a separate thread or done on CPU in parallel while GPU works). Use fast networking (keep connections open, use binary protocols or efficient serialization). Each millisecond outside of the model counts when chasing ultra-low latency.

6. Increase Batch Size (if latency allows some): Counter-intuitively, to maximize throughput performance you use bigger batches – but if we define performance as “serve as many tokens per second as possible”, then yes, batch. However, if single-request latency is the definition, then keep batch = 1 for that request. Often performance requirements are a mix: maybe you want to handle X requests per second with Y latency. Tuning batch and concurrency to meet both is an optimization challenge.

7. Consider Model Tweaks: If allowed, one might fine-tune LLaMA 3 to reduce complexity – e.g., pruning attention heads or layers that contribute least to outputs needed. If you prune the model (drop 10% of heads that aren’t important for your tasks), you effectively speed it up. This is advanced and could degrade quality if not careful, but research in efficient Transformers often finds you can remove some parts with minimal impact on outputs for specific tasks (Azure OpenAI Best Practices) .

8. Networking and Proximity: To maximize perceived performance, deploy the model as close to users as possible (multiple regions) to cut network latency. Also use CDN or edge caching for any static parts of the response (though for dynamic LLM output, mostly you can’t cache answers widely, except maybe for identical requests). In some cases, projects bring models to the edge (on-prem or devices) to avoid network round-trip entirely, but LLaMA 3 will likely be too large for most edge devices. Still, if some form of model compression allows on-device usage, that eliminates server latency and is ultimate performance for the user (just an aside consideration; realistically LLaMA 3 will live in the datacenter for most).

In essence, maximizing performance often means maximizing spending in smart ways: more powerful hardware, more instances for parallel work, more compute used (speculative decoding uses extra compute) – all to shave off time. This is why a careful cost-benefit is needed: for each technique, evaluate if the latency gain or throughput gain is worth the cost. For example, if using an H100 vs A100 gives 30% faster responses but costs 50% more, one might opt for the A100 unless that latency is critical. On the other hand, if an optimization gives you 3x speed for only 1.5x cost (like speculative decoding with a small model), that might be worth it for high-end use.

To ground with a citation: Meta’s research showed that using multi-query attention significantly reduced memory and improved throughput in their LLMs (Mastering LLM Techniques: Inference Optimization | NVIDIA Technical Blog) (that’s a model architecture optimization purely for inference speed). And as NVIDIA’s blog highlights, combining all these tricks (TensorRT engines, speculative decoding, multi-GPU) yields state-of-the-art throughput on their hardware (TensorRT-LLM Speculative Decoding Boosts Inference Throughput by up to 3.6x | NVIDIA Technical Blog) . So the knowledge and tools exist to push LLaMA 3 to its limits if budget permits.

Finally, always measure and profile. Bottlenecks in performance can be non-obvious (e.g., a certain layer might be disproportionately slow – maybe optimize that or quantize that layer more). Amdahl’s law applies: after certain optimizations, something else becomes the slowest part. Continuous performance tuning is often needed for cutting-edge latency targets.

Security and Compliance Considerations

When deploying LLaMA 3 as a service, security and compliance must not be overlooked. While the primary focus is on performance, any production system handling user data has to ensure that data is protected and regulations are followed:

• Data Privacy and Encryption: All user interactions with the service should be encrypted in transit (TLS for API calls) to prevent eavesdropping (Azure OpenAI Best Practices). At rest, any stored data (logs, cached prompts, etc.) should be encrypted using cloud KMS. If conversation histories are stored for context or debugging, treat them as sensitive data since users may share personal info. Implement data retention policies – e.g., auto-delete or anonymize chat logs after X days, if not needed, to minimize risk.

• Access Control: Only authorized clients or users should access the LLM service. Use API keys, OAuth tokens, or network restrictions (VPC endpoints, private links) to ensure the service isn’t openly callable by anyone. Internally, enforce least privilege – for instance, if using Azure OpenAI or a model, integrate with Azure API Management to mediate calls and apply security checks . Ensure the servers running the model have minimal access to other systems; lock them down via security groups or firewall rules so they only communicate on expected ports to expected services.

• Isolation: In multi-tenant scenarios (multiple clients using the same service), prevent data leakage between tenants. This can be done by not mixing their data in the same context window and by resetting the model state between sessions (aside from intended session memory). On a Kubernetes cluster, use namespace isolation and maybe even dedicated nodes if clients require it. Ensure one user cannot somehow query the model to get another user’s prompts (this would likely only happen if caches were shared insecurely or if prompt IDs were predictable in a cache API).

• Monitoring and Abuse Detection: Large language models can be abused to generate unwanted content or to attempt prompt injections. Implement monitoring for abnormal usage patterns – e.g., a single IP making thousands of requests per minute (could be a DDoS or scraping attempt) – and throttle or block as needed. Also track the content outputs if required: for compliance, you might need to log output that was delivered in case of later audits or user reports (but this conflicts with privacy, so it depends on the use-case and consent).

• Compliance Standards: Depending on your domain, compliance might include GDPR in Europe (right to be forgotten, data residency), HIPAA in healthcare (protection of PHI), or others like SOC 2, ISO27001 for general cloud services. For GDPR, ensure you have a legal basis for processing any personal data in prompts, and provide ways to delete user data on request. Avoid storing personal data unless necessary. If users are in the EU, consider hosting their data and the service in an EU data center to avoid cross-border transfers. For HIPAA, if LLaMA 3 might handle health-related user queries, you’d need the entire pipeline to be HIPAA compliant – encryption, audit logs, access controls, and a signed BAA with the cloud provider. Azure, AWS, GCP all have specific guidance for HIPAA compliance (like using certain approved services and configurations).

• Content Filtering and Policy: To comply with platform policies or laws (e.g., no hate speech, no disallowed content generation), incorporate a content filtering step. This could use another model or rules to check the LLM’s output before returning it to the user. While not a security issue per se, it’s part of responsible deployment. Logging occurrences of disallowed outputs and having a mitigation plan (like a user gets a message “content not available”) helps with compliance especially if minors could use the service (then COPPA or other regulations might apply for content).

• Secure DevOps: Ensure the model and code come from trusted sources (supply chain security). Apply security patches to the OS and libraries, since these servers are long-running. Use container image scanning and minimal base images for the model server containers to reduce attack surface. Also, protect any API keys or secrets (like OpenAI keys if any, or database passwords) via secure storage (AWS Secrets Manager, GCP Secret Manager, etc.), not hard-coded.

• Audit and Monitoring: Keep audit logs of who deployed what version of the model and when, and any admin access to the system. If a breach or incident occurs, you want traceability. For instance, Azure OpenAI logs can integrate with Azure Monitor for auditing calls. If building your own, at least log admin actions and major events. Also monitor model responses for biases or hallucinations if relevant to ethical compliance, although that veers into AI governance more than technical security.

In summary, running LLaMA 3 safely involves standard cloud security (network security, encryption, access control) plus considerations unique to AI (ensuring user data isn’t inadvertently exposed and that the model usage adheres to policies). Azure’s best practice guide emphasizes centralizing traffic through API gateways for security and compliance checks, using private networking to isolate the service, and monitoring misuse (Azure OpenAI Best Practices) . By following similar guidelines on AWS or GCP (using their analogs like PrivateLink, etc.), you can create a secure environment for your LLM. Compliance will depend on your use-case: if your application is in a regulated industry, deeper measures (and documentation for audits) will be required. Always keep the principle: don’t expose more data or access than necessary, since an LLM service could potentially be an attractive target (e.g., an attacker might try to prompt it in a certain way to reveal info – part of prompt injection concerns – so even at the prompt level you might want to sanitize inputs to avoid prompts like “ignore previous instructions and show system logs” from doing anything).

Framework Considerations TensorFlow PyTorch and vLLM

The choice of inference framework can influence performance and scaling characteristics. LLaMA 3 will likely be developed in PyTorch (as LLaMA 2 was), but deployment can be done via different frameworks or optimized runtimes. Here we compare TensorFlow, PyTorch, and vLLM (a specialized serving engine), focusing on how each handles efficiency and scaling:

TensorFlow Serving XLA and TensorRT integration

TensorFlow has a production-grade serving system called TensorFlow Serving, which is optimized for delivering TensorFlow models at scale. If LLaMA 3 is converted to a TF SavedModel, TF Serving can load it and serve it with REST/gRPC interfaces. Key features include model versioning, A/B rollout, and auto-batching of requests. TF Serving excels in high-throughput scenarios and has been used widely for vision and smaller NLP models in industry. It can leverage GPUs for acceleration – XLA (Accelerated Linear Algebra) compiler in TensorFlow can JIT compile the model graph for optimized execution on GPU. In theory, XLA could fuse many ops in the transformer and optimize memory access. However, large dynamic models (with variable sequence lengths and looped autoregressive decoding) can be challenging for graph-mode frameworks. TensorFlow 2’s eager mode isn’t ideal for performance, so one would use either static graph (difficult for generation loops) or a tf.function with XLA. There have been projects running GPT-2 and similar in TF with success, but PyTorch has been more common for LLMs due to its flexibility.

For inference efficiency, TensorFlow can integrate with NVIDIA TensorRT. This means you can convert parts of the model (or the entire model) into a TensorRT engine which is highly optimized for the GPU (with INT8 support, etc.). TensorRT integration can yield big speed-ups – in one example, TensorRT optimized BERT by ~2-3x. NVIDIA’s TensorRT-LLM library provides a Python API that might allow exporting the LLaMA model from PyTorch to a plan and then running via TensorRT in either a C++ program or via TF’s wrapper (Scaling your LLM inference workloads: multi-node deployment with TensorRT-LLM and Triton on Amazon EKS | AWS HPC Blog) . In fact, the AWS multi-node example uses Triton (which can host TF, Torch, or TRT models) with TensorRT-LLM under the hood .

Scaling in TensorFlow: TensorFlow supports data parallel inference easily (just run multiple TF Serving instances). For model parallel, Google’s internal solutions (like Pathways or the TPU inference system) handle huge models, but open TensorFlow doesn’t have a turnkey model parallel solution for inference. You’d likely rely on outside tools or manually split the model and run two TF Serving instances for different halves of the model (which gets complicated). TensorFlow does have the notion of distributing computation across devices (MirroredStrategy, etc.), but those are more geared toward synchronous training. In inference, a simpler route is to use Triton Inference Server which can manage multi-device TensorRT engines.

One advantage of TF is that it has strong support for batching and scheduling in TF Serving. You can configure max batch sizes and batch timeout, and it will gather requests. It’s very efficient in C++ at combining requests (similar to how TGI or vLLM do in Python/C++). So, a TensorFlow-based deployment could achieve high throughput if implemented well.

However, PyTorch has become the default for LLM dev and many new optimization libraries (DeepSpeed, Hugging Face Accelerate, etc.) are PyTorch-native. TensorFlow might be chosen if your organization already uses a lot of TF or wants to deploy on TPU.

In terms of framework efficiency differences, a 2024 survey of LLM serving noted that the performance is less about TF vs PT core, and more about the serving system optimizations (like continuous batching, KV cache mgmt, etc.) (LLM Inference Serving: Survey of Recent Advances and Opportunities) . Many of those innovations (PagedAttention, etc.) started outside of TF, but could be implemented in it.

PyTorch and Hugging Face Ecosystem

PyTorch is by far the most common framework for LLMs today. LLaMA 3’s model weights will likely be first available for PyTorch/HuggingFace Transformers. Using PyTorch for inference has the benefit of a rich ecosystem: HuggingFace Transformers provides high-level pipelines for text generation, and libraries like Accelerate, DeepSpeed-Inference, and FairScale to optimize it.

HuggingFace Text Generation Inference (TGI) is an efficient server written in Rust and C++ that serves transformer models (compatible with PyTorch weights) with features like multi-threaded token generation, batch scheduling, and CUDA graphs. TGI implements continuous batching and uses the HuggingFace Transformers internals (which now include optimizations like fused kernels from FlashAttention and quantization support). It also adopted PagedAttention to manage memory (LLM Inference Serving: Survey of Recent Advances and Opportunities). Deploying LLaMA 3 with TGI would be a common choice for many, as it’s relatively easy to set up and can scale horizontally.

PyTorch + DeepSpeed: DeepSpeed offers an inference mode that includes optimizations such as weight quantization (ZeRO quant), concurrency, and DeepSpeed-FastGen which aligns with continuous batching and even adds inference-specific parallelism optimizations . DeepSpeed can automatically shard a model across multiple GPUs (tensor parallelism) for you, and handle the communication efficiently – their library was used for multi-GPU serving of BLOOM and other big models. So if you need to serve LLaMA 3 on, say, 4 GPUs in one server, DeepSpeed could be a straightforward way in PyTorch to initialize the model shards and serve as one. It also integrates with MIG and other advanced scheduling.

Scaling PyTorch: For multiple replicas, you just run multiple processes (possibly containerized) and load balance as described. PyTorch doesn’t inherently have a serving solution (TorchServe exists but is not commonly used for LLMs yet). TorchServe could serve a PyTorch model with batch scheduling; it might require custom handlers for an autoregressive generation endpoint. Many practitioners instead use FastAPI or a custom web server that calls into PyTorch code (like the HF pipeline) because of flexibility, even if it’s not as optimized as TGI or Triton. However, doing that at scale runs into Python GIL and async complexities, so likely an optimized runtime like TGI or vLLM is better.

One consideration: PyTorch by default will use one CPU core to drive CUDA. If you have many concurrent requests, you might want to increase the number of PyTorch threads (though too many can lead to contention). Pinning threads to cores and using efficient batching is important. Tools like vLLM actually use PyTorch under the hood for kernels but manage their own scheduling at a higher level.

vLLM Inference Engine

vLLM is an open-source library specifically designed for high-throughput LLM serving. It is essentially a specialized engine that sits on top of frameworks like PyTorch (ensuring compatibility with HuggingFace models) but introduces a custom memory management and scheduling system (Distributed Inference With vLLM - Neural Magic) . The creators of vLLM identified that traditional frameworks left a lot of GPU idle time due to the run-to-completion approach for each request. vLLM’s core innovation is the continuous batching and fine-grained scheduling we discussed, combined with a dynamic memory allocator for the KV cache (their “Virtual Streaming” approach).

Some key features of vLLM:

• Efficient KV Cache Management: vLLM uses a dynamic memory allocation for KV caches (like a slab allocator) that avoids redundant copying. It also supports KV cache compression (quantization) to use less GPU memory (Distributed Inference With vLLM - Neural Magic). By doing so, vLLM can keep many sequences’ state in GPU memory concurrently, enabling serving dozens or hundreds of concurrent requests without OOM, which standard HF pipelines might not handle.

• Prefix Caching: As mentioned, vLLM can identify common prefix tokens among different requests and compute them once . This is not something standard PyTorch or TF will do by default. That means if 10 users ask questions about “Alice in Wonderland” (all prompts start with that text), vLLM will parse “Alice in Wonderland” once and reuse it, whereas naive serving would do it 10 times. This significantly boosts throughput in scenarios with overlapping queries.

• Chunked Prefill and Streaming: vLLM can split the prompt processing (prefill) into chunks to intermix with decoding of others – achieving what the Sarathi-Serve and others research aimed for (no pipeline stalls) (LLM Inference Serving: Survey of Recent Advances and Opportunities). It essentially ensures the GPU is always working on something useful, either filling context or generating tokens, across all requests.

• Integration and Compatibility: vLLM presents an API compatible with OpenAI’s REST interface, making it easy to swap in as a self-hosted alternative to the OpenAI API. It also loads models from HuggingFace, so deploying LLaMA 3 in vLLM is straightforward (once you have the weights). Because it focuses on inference, it doesn’t include training code – it’s lean and purpose-built for serving.

• Distributed Inference: Initially vLLM was single-node, but it’s evolving to support multi-node inference (as Neural Magic’s blog suggests) (Distributed Inference With vLLM - Neural Magic) . Model parallelism with vLLM might involve using Megatron-LM style partitioning (they mention leveraging techniques from Megatron ). As of early 2025, vLLM can utilize multiple GPUs in one node and there are community contributions for multi-node. This means vLLM could potentially handle a model larger than one GPU memory by sharding it, although its primary focus was efficient scheduling rather than model sharding at first.

When comparing: PyTorch (vanilla) might yield, say, X tokens/sec on one GPU; vLLM can often yield several times X on the same hardware due to better batching. For example, one study found vLLM achieved higher throughput than HuggingFace pipelines in various settings by 2-4x while maintaining low latency for many concurrent requests (LLMOps: vLLM for fast LLM inference | by Jimmy Wang | Medium). It’s essentially doing what a well-tuned manual PyTorch server would do, but automated and optimized in C++/CUDA extensions.

From a scaling perspective, vLLM’s efficient use of a single node means you need fewer total nodes to handle a given QPS, which reduces cost or allows scaling to more users. It aligns well with both interactive and batch scenarios by adjusting scheduling.

In summary, if ultimate performance on GPUs is needed and you’re okay using community projects, vLLM is a top choice for inference – it embodies many 2023–2024 research insights in a usable package (LLM Inference Serving: Survey of Recent Advances and Opportunities) . PyTorch with standard HuggingFace is simpler but may not scale as well without adding things like DeepSpeed or running on Triton. TensorFlow can be used but would likely need significant engineering to match those optimizations unless you rely on Triton+TensorRT (which in a way bypasses a lot of TF overhead). Many companies choose a hybrid: develop and fine-tune model in PyTorch, then export to ONNX or TRT for serving in a C++ runtime (especially for fixed prompt lengths etc., though for generative that’s trickier due to control flow).

One note: NVIDIA Triton Inference Server is a framework-agnostic serving platform that supports TensorFlow, PyTorch, ONNX, and more. It could load a PyTorch model or a TensorRT engine and handle http/gRPC, batching, etc. Triton has plugins like FasterTransformer backend for GPT models that implement optimized kernels (similar to what HF and vLLM do). So Triton is also an option – in fact, NVIDIA often demonstrates large LLM serving with Triton + TensorRT-LLM (Scaling your LLM inference workloads: multi-node deployment with TensorRT-LLM and Triton on Amazon EKS | AWS HPC Blog). That can be seen as another “framework”, albeit specialized. Triton would be chosen if you want a sturdy, Nvidia-supported server and are possibly using mixed frameworks.

To wrap up the frameworks comparison:

• TensorFlow: Offers industrial-strength serving and easy integration with Google’s ecosystem. Best if you plan on XLA optimized graph execution or have TPUs, or already have TF models to host alongside. May require exporting the model to TF (which could be non-trivial for LLaMA unless using an ONNX conversion).

• PyTorch: Most straightforward for LLaMA 3 (as it’s native), rich community tools for optimization. Using PyTorch with a specialized serving solution (like HF TGI or TorchServe with custom handler) can give a good balance of ease and performance.

• vLLM: Cutting-edge performance specifically for LLMs, likely to yield the highest token throughput and flexibility in serving multiple requests concurrently. It’s a relatively new project (2023) but has gained traction because of its efficiency and Apache 2.0 license (open and free). For anyone deploying a large model to many users, vLLM can reduce the required hardware while meeting latency targets (LLM Inference Serving: Survey of Recent Advances and Opportunities).

In practice, one might prototype with PyTorch (for simplicity) and then move to vLLM or Triton for production for better performance per dollar. Ensuring that the chosen framework supports the needed features (e.g., streaming, multi-GPU, quantization) is key. Fortunately, both the open-source community and vendors have been actively improving LLM inference tooling through 2024 and into 2025, so deploying something like LLaMA 3 at scale is becoming more accessible and efficient with time (Optimizing LLM Inference Throughput via Memory-aware and SLA-constrained Dynamic Batching).

References:

1. Baolin Li et al., “LLM Inference Serving: Survey of Recent Advances and Opportunities,” arXiv preprint arXiv:2407.12391, 2024. (LLM Inference Serving: Survey of Recent Advances and Opportunities)

2. Aman Shanbhag et al., “Scaling your LLM inference workloads: Multi-node deployment with TensorRT-LLM and Triton on Amazon EKS,” AWS HPC Blog, Dec. 2024. (Scaling your LLM inference workloads: multi-node deployment with TensorRT-LLM and Triton on Amazon EKS | AWS HPC Blog)

3. Bowen Pang et al., “Optimizing LLM Inference Throughput via Memory-aware and SLA-constrained Dynamic Batching,” arXiv preprint arXiv:2503.05248, 2025. (Optimizing LLM Inference Throughput via Memory-aware and SLA-constrained Dynamic Batching)

4. Junguang Zhu et al., “PagedAttention: Memory-Efficient Transformer KV Cache for Web-Scale Deployment,” arXiv preprint arXiv:2308.09283, 2023. (LLM Inference Serving: Survey of Recent Advances and Opportunities)

5. Microsoft Azure, “Azure OpenAI Best Practices – Insights from Customer Journeys,” Azure Tech Community Blog, Jun. 2024. (Azure OpenAI Best Practices)

6. Kwon et al., “vLLM: Easy, Fast, and Cheap LLM Serving with Virtualization,” UC Berkeley Sky Lab, 2023. (Distributed Inference With vLLM - Neural Magic)

7. NVIDIA, “TensorRT-LLM Speculative Decoding Boosts Inference Throughput by up to 3.6x,” NVIDIA Technical Blog, Dec. 2024. (TensorRT-LLM Speculative Decoding Boosts Inference Throughput by up to 3.6x | NVIDIA Technical Blog)

8. Horace He et al., “Accelerating Large Language Model Decoding with Speculative Sampling,” arXiv preprint arXiv:2211.17192, 2022.

9. Song et al., “LLM.int8(): 8-bit Matrix Multiplication for Transformers at Scale,” arXiv preprint arXiv:2208.07339, 2022.

10. Vijay Pradeep et al., “FastServe: Low-latency, Resource-efficient LLM Serving via Efficient KV Cache Management and Scheduling,” MLSys 2024. (LLM Inference Serving: Survey of Recent Advances and Opportunities)
