ML Interview Q Series: How can you methodically choose the ideal number of clusters k using the Silhouette Method?

📚 Browse the full ML Interview series here.

Comprehensive Explanation

The Silhouette Method is a popular approach for deciding how many clusters k to use in a clustering task, most commonly with algorithms like k-means. It relies on a measure, often called the Silhouette Coefficient, that captures how similar each data point is to points within its own cluster (intra-cluster similarity) versus how similar it is to points in other clusters (inter-cluster similarity).

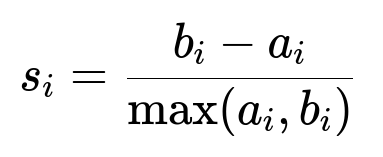

A data point i has two main distance measures: a(i) is the average distance of i to all other points in the same cluster, and b(i) is the average distance of i to all points in the nearest other cluster. The Silhouette Coefficient for a single data point i can be computed with the formula shown below.

Here a_i refers to the average intra-cluster distance for point i, and b_i represents the average distance from point i to the closest cluster that is not the one containing i. The value of s_i ranges between -1 and +1. The sign and magnitude of s_i indicate how well-separated the point is from other clusters, relative to how tight it is within its own cluster.

A negative silhouette indicates the point may be in the wrong cluster because its average distance to a different cluster is smaller than its distance to its own cluster. A silhouette near zero means the point is close to the boundary between two clusters. A high positive silhouette means the point is much closer to the points in its own cluster than those in the nearest other cluster, suggesting an excellent separation.

To decide on k, you can compute the average silhouette value s for all data points at each candidate k. The typical procedure is:

Choose a range of k values to test. Perform clustering for each k and compute the Silhouette Coefficient s_i for all data points. Average these values to get a single silhouette score s for that k. Select the k with the highest average silhouette score.

This approach effectively balances cohesive within-cluster grouping with clear separation to other clusters. Once you have computed s for several k values, the best cluster count is often the one that maximizes the average silhouette.

In practice, one might also look at the shape of the silhouette plot (a bar plot of silhouette widths for each data point grouped by cluster) to identify potential misclassifications or wide variations in silhouette scores within the same cluster. If a cluster has many negative silhouettes, that suggests poor separation or a suboptimal choice of k.

Computationally, the Silhouette Method can be more expensive for large datasets, because distances between points and all other data points (or between points and other cluster centers) must be computed. However, libraries such as scikit-learn provide efficient implementations.

Below is a brief Python snippet illustrating how to compute the silhouette score for different values of k using scikit-learn.

import numpy as np
from sklearn.cluster import KMeans
from sklearn.metrics import silhouette_score

def find_optimal_k(data, k_min=2, k_max=10):
    best_score = -1
    best_k = None
    scores = []
    for k in range(k_min, k_max+1):
        kmeans = KMeans(n_clusters=k, random_state=42)
        labels = kmeans.fit_predict(data)
        score = silhouette_score(data, labels)
        scores.append(score)
        if score > best_score:
            best_score = score
            best_k = k

    return best_k, scores

# Usage:
# Suppose X is your data in NumPy array form
# chosen_k, silhouette_scores = find_optimal_k(X, k_min=2, k_max=10)
# print("Optimal k based on Silhouette Score:", chosen_k)

Common Pitfalls and Considerations

A key subtlety is that the Silhouette Method implicitly assumes a certain structure in the data, often aligned with spherical or dense cluster shapes (such as k-means). For non-globular clusters or data that might form elongated shapes, the silhouette measure might not fully capture the best grouping. Another issue arises if the dataset is very large, as computing all intra-cluster and nearest-cluster distances can be time-consuming. Approaches like sampling or approximate distance computations may then be required for efficiency.

Potential Follow-up Questions

Could the Silhouette Method produce more than one suitable k?

It is possible that the curve of average silhouette scores has multiple near-equal maxima. One must also consider domain knowledge, interpretability, and practical constraints such as computational cost or expected cluster sizes. In such cases, it can be reasonable to pick the smaller or larger k after visually examining the silhouette plots and considering the nature of the data.

What if the Silhouette Scores are consistently low across all k?

Consistently low silhouette values might suggest that the data does not cluster well under the chosen algorithm or metric. It could mean that the features used are not discriminative enough to form coherent clusters. It might also indicate that the data is too noisy or that the distance metric is poorly chosen. Collecting more representative features or applying dimensionality reduction techniques can sometimes help.

How does the Silhouette Method compare to the Elbow Method?

The Elbow Method typically relies on the within-cluster sum of squares metric. You examine how the sum of squared distances decreases as k increases and look for a sharp "elbow" point. However, identifying the elbow can be subjective. The Silhouette Method, in contrast, provides a more interpretable score for each individual sample and an average measure for the overall clustering. It can sometimes offer a clearer optimal choice of k. Yet, in certain applications, the Elbow Method might be more straightforward to compute, especially for large datasets.

Is the Silhouette Method applicable to any clustering algorithm besides k-means?

Yes, any clustering algorithm that can assign labels to samples in a consistent way can use the Silhouette Method for evaluation. For example, hierarchical clustering, DBSCAN, or spectral clustering can be evaluated through silhouette scores as long as you can measure distances between points. In density-based methods like DBSCAN, you just need a well-defined notion of distance and a label for each data point (though DBSCAN may label outliers as noise, which sometimes complicates the silhouette interpretation).

How can you interpret negative Silhouette values for many points?

A negative silhouette value for a point means it is closer on average to a different cluster than to the cluster it was assigned. If many points exhibit negative silhouettes, it is a strong indication that the clustering configuration is not appropriate. This can happen if the data does not naturally partition into well-separated groups with the chosen algorithm, or if the number of clusters is too high or too low.

Are there any computational efficiency concerns?

Computing the average silhouette for a large dataset can become expensive, because each point’s distance to every other point (or at least to the representative cluster statistics) may be required. For large datasets, strategies might include using mini-batch clustering or sampling a subset of points to approximate the silhouette score. This approximation can still guide the selection of k without incurring the full cost of computing silhouettes for all points.
