ML Interview Q Series: Recurrent Neural Networks: Processing Sequences and Tackling Vanishing Gradients with Gated Units.
📚 Browse the full ML Interview series here.
8. Recurrent Neural Networks: What is a Recurrent Neural Network (RNN) and how does it differ from a traditional feed-forward neural network? *Explain how RNNs process sequences of data (e.g., time series or text) using hidden state recurrence. What challenge do vanilla RNNs face with very long sequences, and why does this make learning long-term dependencies difficult?*
Recurrent Neural Networks are designed for handling sequential data where observations in the sequence have a natural ordering over time or position. They differ from conventional feed-forward networks in that they maintain an internal hidden state that evolves as inputs arrive in a temporal or sequential order. This hidden state acts like a memory, allowing RNNs to capture contextual information. However, vanilla RNNs face issues when trying to capture long-term dependencies, because information must be propagated across many time steps. This typically leads to vanishing or exploding gradients, hampering the network’s ability to learn relationships that span extended ranges.
RNN Overview and Key Idea
At a high level, Recurrent Neural Networks incorporate a feedback loop into their architecture to handle sequences. Unlike a feed-forward network, which only processes a fixed-size input in a single forward pass, an RNN processes one element of the sequence at a time and updates its hidden state at each step. This mechanism supports tasks like language modeling, speech recognition, and time-series analysis, where prior context is crucial.
Differences from Traditional Feed-Forward Networks
Feed-forward neural networks assume that inputs and outputs are independent of each other, which is usually sufficient for tasks like classification of static images. They take a fixed-size input (e.g., an image flattened into a vector) and compute an output layer by layer. In contrast, an RNN uses its internal hidden state to accumulate knowledge from earlier elements in the sequence. This memory aspect makes RNNs naturally suited to sequential data because the current output can depend on both the current input and a summary of past inputs encoded in the hidden state.
How an RNN Processes Sequences
Challenges with Very Long Sequences
Vanilla RNNs update their hidden states through repeated multiplication of weight matrices over many time steps. In the backpropagation phase, gradients that flow from the output at a far time step back to the earlier time steps can either diminish exponentially (vanish) or grow uncontrollably (explode). Both extremes pose a major challenge in training:
Vanishing Gradients: As the number of time steps grows, the gradient signals become very small. This makes it difficult for the network to learn how early inputs influence much later outputs, resulting in poor performance when capturing long-range dependencies.
Exploding Gradients: By contrast, large eigenvalues in the recurrent weight matrices can make gradients accumulate to enormous values, leading to unstable training and parameter updates that overshoot optimal values.
These issues limit a vanilla RNN’s ability to capture long-term context, making it difficult to learn dependencies that span many time steps. Advanced architectures like LSTM (Long Short-Term Memory) and GRU (Gated Recurrent Unit) have gating mechanisms specifically designed to reduce the impact of vanishing and exploding gradients, thereby enabling more effective learning of long-range dependencies.
What is Backpropagation Through Time (BPTT), and How Does It Work?
Backpropagation Through Time is the training algorithm used for RNNs. Unlike in feed-forward networks, we unroll the recurrent connections across time steps to form a computational graph. After computing outputs for each time step, we apply backpropagation along this unrolled graph, summing or accumulating gradients across the time dimension. Because the same weights are reused for every time step in an RNN, we combine the contributions of errors at all time steps to update the parameters. This unrolled approach can become computationally expensive for very long sequences, and it also exacerbates vanishing or exploding gradients because errors have to propagate through many multiplications of the weight matrices.
The main steps in BPTT are:
We unroll the RNN over the entire sequence length or over a truncated number of steps. We compute forward passes for each time step. We compute loss at the final time step (and possibly intermediate time steps, depending on the task). We backpropagate gradients from the end of the sequence through each time step, summing or aggregating these gradients for each parameter. We update the parameters based on the summed gradients.
When the sequence is extremely long, an exact unrolling over all time steps becomes impractical. Truncated BPTT is then used, where we split the sequence into manageable chunks and backpropagate over smaller subsequences to keep computations and memory usage in check.
How Do Vanishing and Exploding Gradients Arise?
Vanishing gradients happen when the eigenvalues of the recurrent weight matrix are less than 1 in magnitude. Every time we multiply by that matrix during backpropagation, the gradient gets scaled down. Over many time steps, the gradient diminishes to near zero, making it hard for parameters to adjust in a way that captures long-term patterns.
Exploding gradients, on the other hand, happen when the eigenvalues are larger than 1. Repeated multiplication amplifies the gradient at each time step, causing updates to blow up and possibly destabilize training. One common solution is gradient clipping, which normalizes or bounds the gradient magnitude to prevent excessively large parameter updates.
How Do LSTM and GRU Architectures Address This Issue?
Both LSTM (Long Short-Term Memory) and GRU (Gated Recurrent Unit) architectures incorporate gating mechanisms to help regulate the flow of information across time steps, mitigating vanishing gradients. These architectures maintain an internal cell state or gating signals that control how much of the past information is carried forward, how much new information is added, and how much old information is discarded. This design makes it more feasible for the network to retain relevant information over long sequences.
For instance, an LSTM cell has an input gate, a forget gate, and an output gate. The forget gate decides what information from the cell state to remove, the input gate decides how much new information to add, and the output gate decides how much of the internal cell state is exposed to the next layer. These gating functions help preserve gradients when propagating backward through time, making LSTMs more robust to capturing longer-range dependencies than vanilla RNNs.
How to Implement a Simple RNN in PyTorch
Below is a minimal example of creating and using a simple RNN in PyTorch. This example outlines how you might define an RNN layer and feed a sequence of inputs to it:
import torch
import torch.nn as nn
class SimpleRNN(nn.Module):
def __init__(self, input_size, hidden_size, output_size):
super(SimpleRNN, self).__init__()
self.hidden_size = hidden_size
self.rnn = nn.RNN(input_size, hidden_size, batch_first=True)
self.fc = nn.Linear(hidden_size, output_size)
def forward(self, x):
# x of shape: (batch_size, seq_length, input_size)
h0 = torch.zeros(1, x.size(0), self.hidden_size)
out, hn = self.rnn(x, h0)
# Take the output from the final time-step: out[:, -1, :]
out = self.fc(out[:, -1, :])
return out
# Example usage:
model = SimpleRNN(input_size=10, hidden_size=20, output_size=1)
input_data = torch.randn(5, 7, 10) # batch_size=5, seq_length=7, input_size=10
output = model(input_data)
print(output)
In this snippet, the RNN layer transforms each timestep of the input sequence, and the hidden state is passed from one timestep to the next. After processing all time steps, the final output is taken from the last timestep and passed to a fully connected layer for classification or regression.
What Are Some Practical Steps to Address Exploding and Vanishing Gradients in RNNs?
Researchers often adopt several strategies to address gradient challenges:
Switching to LSTM or GRU architectures, which incorporate gating mechanisms to mitigate vanishing gradients. Using gradient clipping to curb exploding gradients. Employing proper weight initialization schemes, such as orthogonal initialization for recurrent connections. Shortening the unrolled sequence length or using truncated BPTT to manage computational complexity. Using residual connections or layer normalization in more advanced RNN variants to help stabilize training.

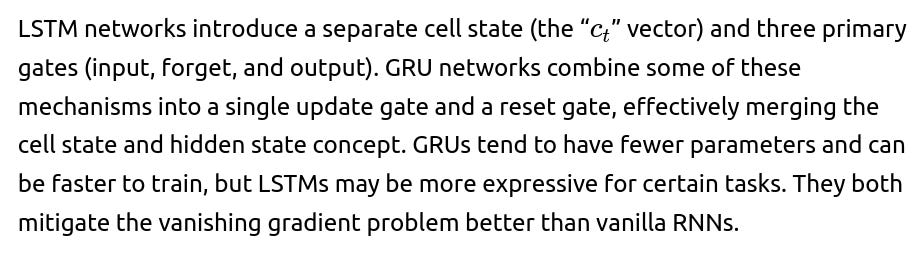

Could You Compare LSTM and GRU in More Detail?
When Would You Choose an RNN Over a Transformer?
Transformers have largely supplanted RNNs in many natural language tasks due to their ability to model long-range dependencies without recurrent operations. However, RNNs can still be effective in certain scenarios:
Real-time and streaming tasks, where incoming data arrives in sequential order and you cannot (or do not want to) process the entire sequence at once with large attention-based models. Resource-constrained environments where the memory footprint of a Transformer is too large. Certain specialized domains (e.g., extremely long sequences or continuous signals) where RNN-based methods are tuned and have proven success.
Still, given current trends in research and industry, Transformers are typically the go-to architecture for most text-based sequence modeling, overshadowing RNNs in many high-profile applications.
What Is “Teacher Forcing” in RNN Training?
Teacher forcing is a technique often used in training RNNs for sequence generation tasks. Instead of feeding the model’s own predicted output back as input at the next time step, the ground-truth target at the previous time step is fed in. This helps the network converge faster by providing more direct supervision at each step. However, it can lead to exposure bias, where the model is not accustomed to its own prediction errors at inference time. A popular strategy is to gradually reduce the probability of teacher forcing over epochs, so the model gradually learns to rely on its own outputs.
How Does Real-World Data Complexity Affect RNN Training?
Real-world data often involves irregular time intervals, missing values, or extremely long sequences. These factors can make direct application of an RNN challenging. Careful data preprocessing, time-series imputation techniques, or more sophisticated architectures (like Time2Vec embeddings or attention-based models that handle missing data) may be needed. The inherent sequential nature also makes parallelization less efficient than, say, in a Transformer architecture, so large-scale training of RNNs can become computationally expensive.
Below are additional follow-up questions
How can RNNs handle variable-length sequences without losing important contextual information?
A common requirement in many real-world tasks is dealing with variable-length sequences. For instance, you might have sentence inputs of differing lengths in NLP applications or time-series data recorded over variable durations in IoT or sensor monitoring scenarios.
To address variable sequence lengths in RNNs, one widespread approach is to pad shorter sequences so they match the length of the longest sequence in a batch. However, merely padding the input might lead to misleading computations if the RNN unrolls beyond the true sequence boundaries. For this reason, many deep learning frameworks (like PyTorch) offer utilities such as "pack_padded_sequence" and "pad_packed_sequence." By providing the actual lengths of each sequence, these functions ensure the padded time steps do not contribute to the final hidden states in ways that skew results.
A practical pitfall occurs if your data processing pipeline incorrectly pads sequences or forgets to supply actual sequence lengths to the RNN. This can result in worse performance and slower training because the network tries to learn from artificial padding tokens. Therefore, an important detail is to keep track of sequence lengths at every stage and consistently use them to guide the RNN computations.
Another technique is dynamic unrolling of RNNs in certain frameworks, which automatically processes sequences until the last valid time step. In addition, attention-based methods can also mitigate issues with variable-length inputs because they allow a model to focus selectively on relevant parts of a sequence, reducing the burden on a single hidden state to encode all prior information.
What are many-to-one, many-to-many, and one-to-many RNN architectures, and how do you decide which to use?
RNNs can be configured in different ways depending on how inputs and outputs are structured:
Many-to-One: You have a sequence of inputs (e.g., words in a sentence, steps in a time series) mapped to a single output (e.g., sentiment classification, final numeric prediction). Here, only the last hidden state is typically used to produce the final result.
Many-to-Many: Each time step in the input sequence corresponds to an output at every time step (e.g., machine translation, where every input word produces or influences an output word). Alternatively, a “delayed” many-to-many setup could allow a mismatch between the input and output sequence lengths (like in sequence labeling tasks).
One-to-Many: You start with a single input and generate a sequence of outputs (e.g., image captioning, where a single image embedding is fed into an RNN decoder to generate a text sequence).
Choosing the right configuration depends on the problem statement:
If the goal is a single classification or regression (like sentiment classification or anomaly detection in a time series), a many-to-one approach is suitable.
If the application requires generating a sequence output from a sequence input (like translation, speech recognition, or video captioning), a many-to-many approach is typically used.
If you only have a single “seed” input (like an image, a topic embedding, or a start-of-sequence token) that should produce an entire generated sequence, you choose one-to-many.
A pitfall arises when the mismatch between input and output sequence lengths is not properly accounted for, especially in tasks like translation where input and output lengths vary significantly. Misalignment in how you handle variable-length sequences across time steps can lead to training inconsistencies or incorrect backpropagation paths.
How can we approach data augmentation for RNN-based models, especially for text or time series?
Data augmentation helps generalize models by artificially increasing the size and diversity of the training set. For text-based tasks, augmentation is more challenging than for images because replacing or modifying tokens can alter meaning in unexpected ways. Some methods include:
Synonym Replacement: Replace words or phrases with synonyms from a thesaurus or language model, though you risk changing the semantics of a sentence if done incorrectly.
Random Swap, Insertion, Deletion: Small perturbations to word ordering can provide slight variations. However, excessive changes can degrade data quality.
Back-Translation: Translate a sentence from one language to another and back. This can generate new sentences that retain approximate semantics.
Noise Injection: For time-series data, you can inject small perturbations or random Gaussian noise into the signal to simulate measurement imprecision. For text, artificially introducing character-level typos might be relevant to robustly handle noisy real-world input (e.g., social media data).
A subtle pitfall is inadvertently shifting the distribution of the data too far from the real-world samples. This can happen if the augmentations introduce unrealistic distortions or synonyms that carry a different connotation. Therefore, it’s crucial to balance augmentation strength with preserving the original semantics.
What strategies can we use to improve the interpretability of RNN hidden states?
Interpretability remains a challenge in neural networks, and RNNs are no exception. Possible strategies include:
Attention Mechanisms: By introducing attention, the model can expose which parts of the input sequence the network deems most relevant at each time step. This can offer insights into how the model processes context.
Visualization of Hidden States: You can project high-dimensional hidden states into lower-dimensional spaces (e.g., via t-SNE, PCA) to see if the hidden states cluster by class or exhibit some temporal pattern.
Gradient-Based Analysis: Methods like saliency maps or Integrated Gradients can show how sensitive outputs are to changes in particular time steps or tokens.
Gating Signals in LSTMs/GRUs: Inspecting the values of forget, input, and update gates can reveal which parts of the past are “forgotten” or “remembered.”
A major pitfall is that interpretability methods might not always confirm real causal relationships. For example, attention heat maps could be misleading if the model is using the gating mechanism in unexpected ways. Another subtle issue is that interpreting hidden states is easier to do qualitatively, but turning interpretability insights into quantitative improvements in the model is often non-trivial.
How can RNNs process multiple input streams or multimodal data?
Real-world applications might involve multiple input streams, such as text plus audio, or text plus structured metadata. One approach is to use a separate RNN for each modality or stream and then merge the resulting hidden representations at a later stage. For instance, if you have textual data and sensor data, you can:
Process the text with an RNN (e.g., LSTM-based text encoder).
Process the sensor time series with another RNN.
Concatenate or combine these hidden states with a fusion layer (e.g., a fully connected layer) before the final output layer.
It’s essential to ensure time alignment if the data streams are temporally correlated (e.g., merging frames of video with corresponding audio segments). If the streams have different sampling rates or asynchronous events, naive alignment could cause inaccurate associations. Careful preprocessing, synchronization, or cross-attention mechanisms that match segments across modalities can mitigate these pitfalls.
What are recommended ways to tune hyperparameters in RNN architectures?
RNNs are sensitive to hyperparameter choices, so systematic tuning is critical:
Hidden Size: Controls the capacity of the “memory.” Too large a hidden state can overfit or cause memory constraints. Too small and the model underfits or fails to capture long-range dependencies.
Number of Layers (Depth): Deep RNNs can extract more abstract features but can be harder to train. Techniques like residual connections or skip connections might be necessary.
Learning Rate & Optimizer: RNNs often benefit from adaptive optimizers (like Adam). However, if you observe exploding gradients, you may need to reduce the learning rate or use gradient clipping.
Dropout: Particularly important for RNNs to avoid overfitting. Recurrent dropout (applied consistently across time steps) is sometimes used, but care is needed to avoid shutting down the recurrence entirely.
Batch Size: Larger batch sizes offer more stable gradient estimates but can also obscure unique sequence patterns. For tasks with short sequences, moderate batch sizes are often fine. For very long sequences, you might want to reduce batch size or truncate sequences to fit memory constraints.
A key pitfall is ignoring interactions among these hyperparameters. For example, if you drastically increase the hidden size without adjusting learning rate or adding dropout, you may encounter overfitting or unstable training. Systematic searches or Bayesian optimization can help, but you should keep an eye on computational costs.
What can be done to reduce memory and computational overhead when training large RNNs on lengthy sequences?
Training large RNNs on long sequences can be computationally demanding. Some approaches include:
Truncated BPTT: Instead of backpropagating through the entire sequence at once, you break it into smaller segments and periodically reset the hidden state gradients. This makes the computational graph more manageable, albeit at the cost of approximating true long-range gradients.
Gradient Checkpointing: This method recomputes certain intermediate states during the backward pass to reduce memory usage. It trades off more computation for less memory consumption.
Mixed Precision Training: By employing lower-precision data types (e.g., FP16), you can often fit larger batch sizes in GPU memory without significant drops in accuracy.
Model Pruning or Quantization: If your RNN is extremely large, pruning (removing unnecessary weights) or quantizing (reducing the precision of weights) can shrink model size and inference latency.
A notable pitfall is that some of these techniques can degrade performance if not tuned carefully. For example, too aggressive truncation in BPTT may cause the model to lose critical long-range dependencies; too much pruning can drastically reduce model capacity. Monitoring validation performance and carefully balancing memory savings with performance is crucial.
How do RNNs handle missing or irregularly sampled time-series data?
Real-world time-series data often contains missing values or is recorded at irregular intervals (e.g., sensors failing intermittently, health metrics taken at varying times). Traditional RNNs assume uniform time steps, so some additional strategies include:
Imputation: Fill in missing values via simple methods (mean imputation) or more sophisticated approaches (linear interpolation, advanced models). However, poorly chosen imputation methods can bias the model or bury useful uncertainty information.
Time-Aware RNN Variants: Extensions like T-LSTM or GRU-D incorporate time gaps as part of the model input, adapting the hidden state transitions based on how much time has passed between observations.
Masking: Provide a mask to the RNN that indicates which values are valid at each time step. Coupled with carefully designed gating mechanisms, the RNN learns to handle missing data without forcing the network to rely on incorrect signals.
A major pitfall is that naive approaches to missing data (like just dropping any incomplete sequence) can reduce the data size drastically, limiting generalization. Another subtlety is that irregular sampling might encode essential information about underlying processes—losing that temporal spacing can degrade model performance. Careful representation of time intervals and missingness is often paramount for success.
