ML Interview Q Series: VC Dimension Explained: Assessing the Capacity of 2D Linear Classifiers.
📚 Browse the full ML Interview series here.
VC Dimension: What is the Vapnik–Chervonenkis (VC) dimension of a model class and why is it relevant to learning theory? For example, consider a perceptron (linear classifier) in a 2D feature space – what is its VC dimension, and what does that imply about the model’s capacity?
Understanding the Vapnik–Chervonenkis (VC) dimension is fundamental in learning theory. It captures the largest number of points in some space that a particular model (or hypothesis class) can shatter. Shattering a set of points means that for every possible binary labeling (assignment of +1 or –1, for instance) on those points, the model can find a hypothesis (or set of parameters) that perfectly classifies them according to that labeling. In more intuitive terms, the VC dimension indicates the maximum amount of “flexibility” a hypothesis class has in fitting arbitrary labels on a set of points.
Relevance to Learning Theory
When discussing generalization, if a model has a higher VC dimension, it has a higher capacity to fit complex patterns and potentially overfit. The model can separate more complicated label configurations, but there is also a greater risk that it fails to generalize well to unseen data if not properly regularized or if insufficient training data is provided. Learning theory connects the concept of VC dimension to bounds on generalization error, roughly indicating that a model class with VC dimension d typically needs at least on the order of d training examples to learn reliably without overfitting (under certain assumptions).
Perceptron (Linear Classifier) in 2D Feature Space
A perceptron in a 2D space corresponds to a linear classifier defined by a line that can partition the plane into two half-spaces. Mathematically, this line can be expressed (for a 2D feature vector x) as
The VC dimension for this model in 2D is 3. This means the largest number of points in the 2D plane that a linear classifier can shatter is 3, provided those points are in general position (not collinear). For any labeling of three non-collinear points, one can place a line to classify them exactly as specified. When moving up to four points in general position, it is impossible to realize all possible labelings with a single straight line. Therefore, the perceptron’s capacity in 2D is constrained in that sense.
Implication for Model Capacity
Since the VC dimension is 3, the linear classifier in 2D can represent a moderate range of decision boundaries (all straight lines), but it cannot fit arbitrarily complex patterns. This translates to a relatively low capacity compared to more complex models (e.g., neural networks with many layers, random forests, or kernel methods). However, a low or moderate VC dimension can also come with a reduced risk of overfitting if the problem’s data is well suited to linear separations.
Deeper Explanations and Potential Follow-ups

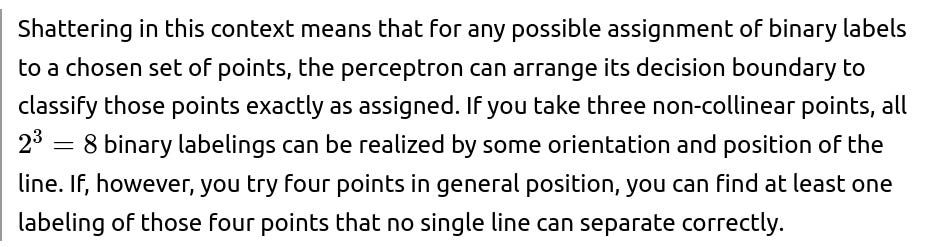

What exactly does “shattering” mean for the perceptron in 2D?
Can we prove that the VC dimension of a 2D perceptron is 3?
To show that it is at least 3, exhibit a configuration of three points (say, in a triangular formation) and demonstrate that for each of the 8 ways to label them, you can find a linear boundary that does so perfectly. To show that it cannot be 4, pick a configuration of four points in, for example, a convex position and show a labeling that no line can achieve. This classic argument involves picking points in a roughly convex quadrilateral shape and labeling two opposite corners with +1, the other two corners with –1 in a checkerboard pattern, which a single line cannot separate.
Why does VC dimension matter for practical model selection?
The VC dimension provides insight into how expressive your model class is. It factors into generalization guarantees: typically, if the training set size is significantly larger than the VC dimension (and certain other assumptions hold), the learned model has a better chance at generalizing well. If the training set size is comparable to or smaller than the VC dimension, the model can often overfit. In practice, though, exact VC dimension analysis can be difficult for complex models (e.g., deep neural networks), and alternative measures like Rademacher complexity or empirical bounds might be more frequently used.
Does a higher VC dimension always mean a better model?
High VC dimension equates to high expressive power. However, it does not automatically lead to better performance on new (unseen) data. A model with an extremely high capacity can overfit the training set if there is insufficient regularization or not enough data. Choosing an appropriate capacity model is about balancing bias and variance. Linear classifiers (low VC dimension in low-dimensional spaces) might generalize better than very high-capacity models if the true relationship is indeed close to linear or if data is scarce.
How do we handle non-linearly separable data if the perceptron in 2D is too limited?
You can expand to higher-dimensional feature spaces (via polynomial features or kernel methods) or use more sophisticated neural networks that effectively learn non-linear boundaries. Kernel methods, for example, can allow linear models to gain a higher capacity by operating in a high-dimensional (sometimes infinite-dimensional) transformed feature space. Alternatively, multi-layer neural networks add layers of non-linearities to capture more complex patterns, thereby increasing the effective VC dimension.
Are there conditions where the perceptron in 2D can still succeed despite its low VC dimension?
Yes. If the true concept is approximately linearly separable, a 2D perceptron can still perform very well. Many real-world problems are not strictly linear in their raw features, but after certain transformations or feature engineering, a linear model can approximate the decision boundary sufficiently well. Furthermore, for problems with abundant data that is near-linearly separable, perceptrons and linear SVMs (support vector machines) often generalize effectively.
Could we measure or estimate the VC dimension in practice for more complex models?
Directly measuring the VC dimension of very large models (such as deep neural networks) is often intractable. Instead, practitioners use strategies like cross-validation, hold-out sets, or regularization to control complexity. Advanced techniques from statistical learning theory, including bounds on the Rademacher complexity or covering numbers, can sometimes shed partial light on how complex the function family might be. In many modern deep learning scenarios, the actual capacity is enormous, so practical heuristics—like early stopping, weight decay, and data augmentation—are used to mitigate overfitting.
Is there a simple Python code snippet that shows how we might check different linear separators for a small set of points in 2D?
Below is a conceptual sketch. In practice, enumerating all possible lines for continuous parameters isn’t feasible, but we can show a brute-force approach to demonstrate how one might try different linear boundaries and see if all labelings can be realized for a small set of points.
import numpy as np
from itertools import product
# Example set of points
points = np.array([
[0, 0],
[1, 1],
[2, 0]
])
All possible labelings for these 3 points
all_labelings = list(product([1, -1], repeat=len(points)))
def can_separate(points, labels):
# Attempt to find a line that separates points according to 'labels'
# A simple demonstration approach is to try multiple random lines
# and see if any line can classify them correctly.
# This is not guaranteed to find a solution, but might show the concept.
for _ in range(10000):
w = np.random.randn(2)
b = np.random.randn()
preds = np.sign(points.dot(w) + b)
if np.all(preds == labels):
return True
return False
for labeling in all_labelings:
labeling = np.array(labeling)
if can_separate(points, labeling):
print(f"Labeling {labeling} can be separated.")
else:
print(f"Labeling {labeling} cannot be separated.")
In this toy example with three points in general position, you should see that all possible labelings can be separated with enough random attempts, illustrating that the perceptron in 2D shatters three non-collinear points.
Below are additional follow-up questions
What if the data is not in “general position”? How does that affect the VC dimension for a 2D perceptron?
When determining the VC dimension of a 2D perceptron, the classic proof relies on choosing points in “general position,” typically ensuring they are not collinear or coincident. In practice, data can have degenerate arrangements such as points all lying on a single line or overlapping points (where multiple samples share the exact same coordinates).
If points are collinear, it restricts the types of label configurations that can be realized by a single linear boundary. For instance, if three points are perfectly collinear, a single line can’t always pick out a middle point and flip its label independently of the outer points. In these degenerate cases, the perceptron’s ability to shatter those points might be diminished compared to the ideal scenario. Thus, the theoretical VC dimension (which assumes the best-case arrangement of points in general position) becomes an upper bound on the capacity. Actual data distributions may lead to an effectively smaller capacity if the data forms highly constrained geometric shapes.
An important subtlety is that the notion of VC dimension states a model “can” shatter up to that many points in at least one configuration. It does not require every arrangement of points to be shattered. Therefore, even if real-world data is not in general position, the maximum theoretical VC dimension of the model class remains the same, though the realizable label configurations on that specific dataset might be fewer.
How do we extend a linear classifier to multi-class classification, and does the VC dimension concept still apply?
Linear classifiers like the perceptron or linear SVMs are inherently binary: they split two classes using a single separating hyperplane. In multi-class scenarios (e.g., 3, 4, or more classes), one common strategy is to decompose the problem into multiple binary classification subproblems, such as one-vs-rest (OvR) or one-vs-one (OvO). Each of these sub-classifiers remains a linear decision boundary in the underlying space.
From a theoretical standpoint, the same concept of a VC dimension applies to each binary subproblem. The overall capacity of the entire multi-class scheme is influenced by how these sub-classifiers combine. For instance, in OvR with K classes, you have K independent linear boundaries. Each boundary can in principle shatter up to 3 points in 2D if considered alone. However, the question of how the combined system’s VC dimension is computed gets more intricate, because the final classification for any point is determined by which sub-classifier “wins.”
Even though the combined model can become more expressive than a single binary classifier, it is not simply K times the capacity in a straightforward sense. The fundamental principle is that VC dimension analysis can still be done, but it quickly becomes more mathematically involved. In practice, we often care more about empirical performance rather than precisely computing an overall multi-class VC dimension, especially for large-scale tasks.
How does adding a margin constraint (as in Support Vector Machines) alter the model’s effective capacity?
Support Vector Machines (SVMs) incorporate a margin constraint that seeks to maximize the distance between the separating hyperplane and the nearest training points. This requirement doesn’t necessarily change the “pure” VC dimension in the theoretical sense for a simple linear separator—an SVM and a classic perceptron are both linear classifiers, and they can represent the same set of possible separating hyperplanes if margin size is not explicitly enforced as an absolute constraint.
However, from a practical standpoint, enforcing a large margin effectively reduces the set of “feasible” classifiers within that model class. In other words, although the theoretical capacity (the set of all linear boundaries) remains the same, the optimization bias focuses on a subset of linear boundaries that have a large margin, thereby reducing the tendency to overfit. This is often thought of as a form of capacity control: among all linear decision boundaries, the SVM solution picks one that might generalize better, even though all those boundaries have the same representational power in principle.
Why can’t a 2D perceptron shatter four points in certain configurations, and are there specific arrangements where it might?
The classic argument for a VC dimension of 3 in 2D is that while the perceptron can shatter any set of three non-collinear points, it fails to shatter at least one labeling for any set of four points in general position. An example is the “XOR-like” pattern or a convex quadrilateral where opposite corners are labeled positively and the other two corners are labeled negatively. No single straight line can correctly separate one diagonal pair from the other.
That said, if four points happen to be arranged in certain degenerate ways (e.g., three points are coincident, or some points lie exactly on top of each other), it might be possible to realize all labelings trivially by focusing on effectively fewer “unique” positions. But in the standard analysis for “general position,” the maximum number of points that can be shattered is 3.
This highlights an edge case: if your dataset has repeated or overlapping points, the difficulty of classification can change in ways that the pure VC dimension analysis doesn’t fully capture. The theoretical measure typically assumes distinct points in general position, but real data can have duplicates, rounding errors, or partial overlap.
Does the VC dimension alone dictate model choice in a real-world project?
While the VC dimension provides a theoretical measure of a model’s complexity and capacity, real-world considerations often overshadow pure VC dimension analysis:
Data Noise: Noisy or mislabeled data might render theoretical shattering arguments less relevant, as perfect classification of any labeling might be neither possible nor desirable.
Regularization: Techniques like weight decay, dropout, or margin maximization effectively reduce the practical “reachable” subset of hypotheses, so the raw VC dimension might not reflect the actual complexity in use.
Computational Constraints: A model with a high VC dimension might be computationally expensive to train. Real-world constraints on training time or inference speed can make simpler models more appealing.
Data Distribution Shifts: VC dimension analysis typically assumes i.i.d. data from a fixed distribution. In real deployments, data distribution can shift over time, complicating generalization guarantees that rely on the training set matching the test set distribution.
Hence, while the VC dimension is conceptually important, practitioners combine it with empirical methods (e.g., cross-validation) and domain knowledge to select a suitable model.
How relevant is the VC dimension concept when dealing with extreme levels of label noise?
When labels are heavily corrupted—imagine a situation where a large fraction of the training set is mislabeled—the notion of shattering any set of points becomes less practically relevant. Shattering suggests the ability to perfectly classify all points in all label configurations, but with high noise, the objective typically is to find a robust decision boundary that ignores outliers or mislabeled instances.
In such cases, alternative theoretical frameworks may be more insightful. For instance, one might explore the concept of “robust” generalization bounds, Rademacher complexity that accounts for noise, or utilize regularization that allows some margin of error. The pure measure of “can we fit any labeling?” becomes less meaningful if many labelings are spurious. Thus, while the VC dimension remains the same from a purely mathematical standpoint, real-world performance in high-noise environments depends more on optimization strategies, loss functions, and regularization.
How does “shattering” differ from the concept of margin-based complexity measures (e.g., in SVMs)?
Shattering focuses on whether there exists any classifier in the hypothesis class that can perfectly separate every possible labeling of a finite set of points. It is a binary yes/no capability. In contrast, margin-based measures, like SVM margins, concentrate on how far the data lies from the decision boundary and how that margin influences generalization.
While an SVM with a linear kernel can represent the same set of linear boundaries as a perceptron, the margin introduces a geometric constraint that can reduce effective complexity. SVM theory often uses bounds involving the margin (e.g., bounding the Rademacher complexity in terms of margin size), which can give a more refined sense of how likely the classifier is to generalize well. Therefore, margin-based concepts can be viewed as a finer-grained measure of complexity than the simple yes/no capacity implied by the VC dimension.
Does regularization or parameter sharing effectively reduce the “practical” capacity below the theoretical VC dimension?
Yes. Regularization techniques such as weight decay ( regularization) or weight sharing (common in convolutional neural networks) can restrict the space of permissible weight vectors, thus making the model less flexible in practice. Even though the theoretical VC dimension might remain large, the subset of parameter values that the training process is likely to converge to becomes smaller.
For instance, in linear models with severe regularization, the weight vector is biased toward smaller norms. While any linear boundary is still mathematically possible, it might be penalized so heavily that the model effectively behaves like a lower-capacity classifier. This discrepancy between the theoretical and practical capacity underscores why many deep learning models, despite having enormous theoretical capacity, do not necessarily overfit catastrophically if appropriate regularization or training techniques are in place.
In what way does feature engineering or data transformations affect the VC dimension of a linear classifier?
Mathematically, a linear classifier in an n-dimensional transformed feature space can have a much higher VC dimension—potentially up to n+1. This is a fundamental idea behind kernel methods: using a kernel function to implicitly work in a higher- (often infinite-) dimensional space without explicitly computing all transformed features.
Hence, while a 2D perceptron has a VC dimension of 3, that same perceptron architecture, once you expand or map features into a higher-dimensional space, can shatter larger sets of points as if the boundary was more flexible. This is still consistent with the idea that the “raw input dimension” alone doesn’t define the entire story: the effective dimension of the feature space after transformations is what truly matters.
Why is it challenging to measure the VC dimension for deep neural networks, and what are alternative capacity measures?
Deep neural networks with millions or even billions of parameters present a massive hypothesis space. In theory, many modern architectures can shatter extremely large sets of points, suggesting an enormous VC dimension—potentially so large that it ceases to provide a tight or practical upper bound.
Compounding this, numerous factors influence the “effective” model capacity:
Architecture: Residual connections, convolutional layers, attention mechanisms, etc.
Regularization: Dropout, data augmentation, weight decay, or batch normalization.
Training Process: Stochastic gradient descent with momentum, adaptive optimizers (Adam, RMSProp, etc.), learning rate schedules, and hyperparameter tuning.
Because these factors dramatically shape the function space actually explored during training, the raw theoretical capacity (i.e., the maximum possible set of functions the network could represent) is not necessarily what the network effectively uses. As a result, alternative measures and empirical techniques are often more relevant:
Rademacher Complexity: Measures how well a model class can fit random noise.
Uniform Stability: Quantifies how much the output of a learning algorithm changes if a single training sample is modified.
PAC-Bayes Bounds: Provides probabilistic bounds on generalization using Bayesian principles.
Compression/Description Length: Considers how well the model or training can compress the data.
