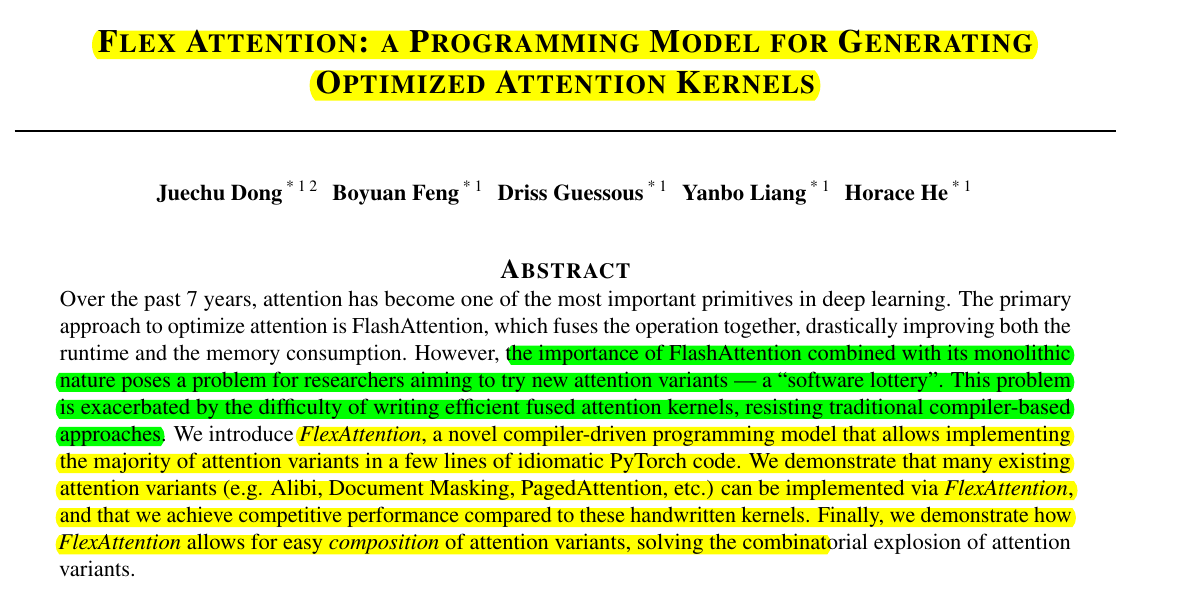

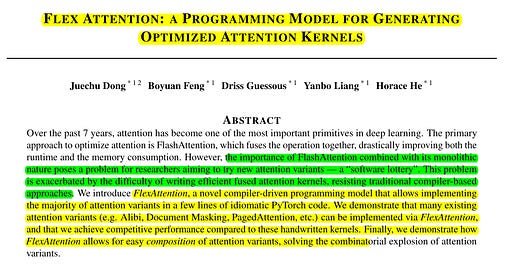

Paper Explained: "Flex Attention: A Programming Model for Generating Optimized Attention Kernels"
2.4x training speedup and 2.04x inference speedup in end-to-end evaluation
FlexAttention lets researchers create custom attention patterns without writing low-level GPU code.
So you can cook up new attention recipes without kernel programming headaches.
FlexAttention enables implementing complex attention variants in just a few lines of PyTorch code while maintaining high performance through compiler optimizations and block sparsity management.
Original Problem 🤖:
→ Current attention mechanisms in LLMs face a "software lottery" - researchers can only use variants supported by existing optimized kernels like FlashAttention. Creating new variants requires extensive manual optimization, limiting innovation.
Solution in this Paper 🛠️:
→ FlexAttention introduces a programming model where attention variants are defined via two simple functions: score_mod for modifying attention scores and mask_mod for specifying attention masks.
→ The system automatically compiles these high-level specifications into optimized kernels using block sparsity and template-based code generation.
→ It supports composition of attention variants through logical operations on masks, solving the combinatorial explosion problem.
Key Insights 💡:
→ Most attention variants can be expressed as score modifications or masking patterns
→ Block-level sparsity tracking avoids materializing large mask matrices
→ Template-based compilation preserves performance while enabling flexibility
Results 📊:
→ Achieves 0.68x-1.43x speedup compared to FlashAttention for supported variants
→ 5.49x-8.00x faster than PyTorch SDPA for unsupported variants
→ Less than 1% runtime overhead when using paged attention
→ 2.4x training speedup and 2.04x inference speedup in end-to-end evaluation

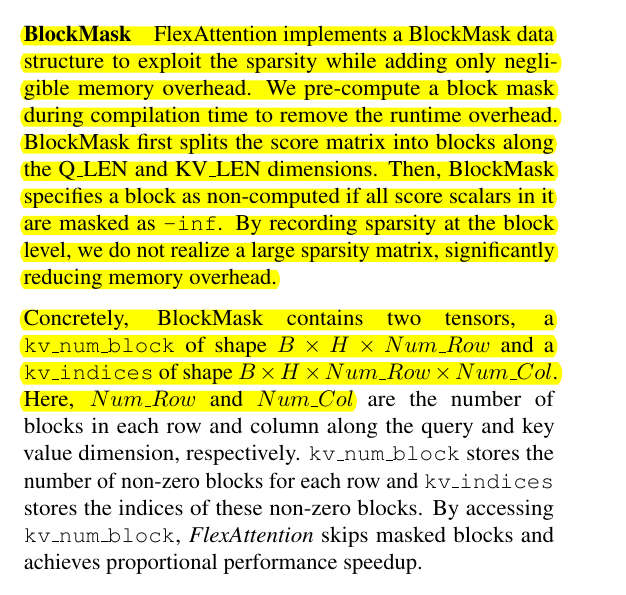

The concept of BlockMask in FelxAttention
📌 Consider a large grid representing all pairwise interactions between query tokens (rows) and key tokens (columns). Instead of working on every single element, this approach groups the score matrix into smaller square blocks.
Some of these blocks are fully visible (every element can contribute to attention scores), others are partially visible (only some elements are valid and the rest should be ignored), and some are entirely irrelevant (no element matters and can be safely skipped).
→ By identifying these three categories—fully visible blocks, partially masked blocks, and fully masked blocks—a system like FlexAttention can manage complexity and optimize computations at a coarser level. Within FlexAttention, this idea is encapsulated in a structure called BlockMask. The BlockMask records which blocks are worth computing and which are not, making it possible to skip large portions of the attention score calculation that would otherwise waste computation time and memory bandwidth.
→ For example, if a certain region of the sequence should not attend to distant tokens beyond a sliding window of positions, FlexAttention uses the BlockMask to mark certain blocks as either fully or partially masked, removing unnecessary work. Where a block is fully masked, it bypasses score computations entirely; where it is partially masked, only the necessary fraction of elements is processed.
→ FlexAttention also leverages two key transformations called score_mod and mask_mod. score_mod applies position-dependent transformations to the attention scores, while mask_mod decides which positions to include or exclude. Instead of doing this element by element for millions of tokens, the BlockMask concept organizes this process by blocks. Fully visible blocks skip the mask_mod since no elements are removed, focusing only on score_mod. Partially masked blocks apply both logic steps, but only where needed. This block-level approach is crucial for achieving flexibility without manually writing specialized kernels.
→ It lets the system dynamically handle different patterns of attention—like causal masking, sliding-window constraints, or other custom patterns—simply by changing how these blocks are labeled and processed.
→ By using BlockMask, FlexAttention unifies the treatment of various attention modifications and masks, letting developers express new behaviors in a few lines of PyTorch code while still achieving performance close to hand-optimized attention kernels.

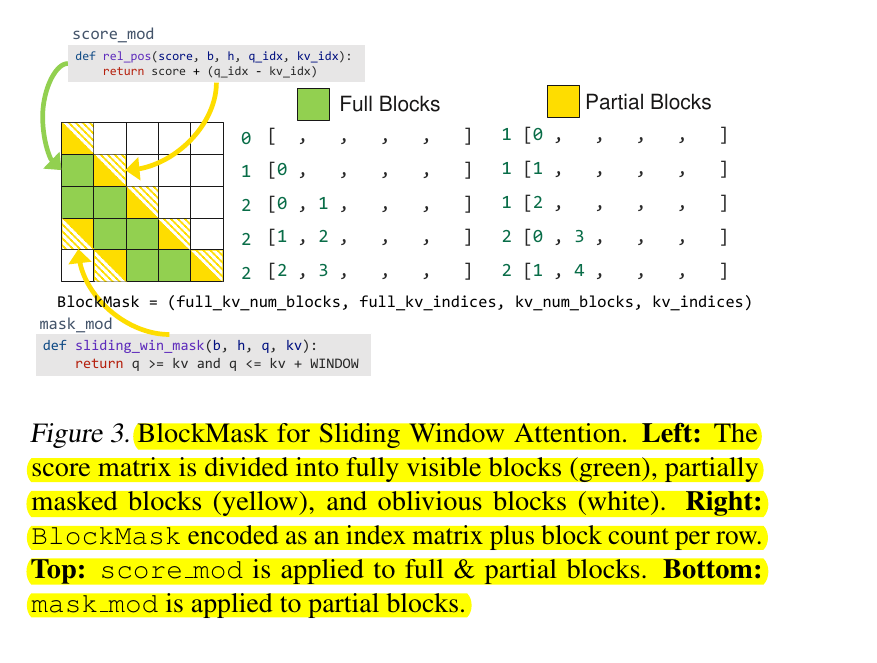

This Image shows how FlexAttention handles Sliding Window Attention:
→ The image shows a large attention score matrix divided into smaller square blocks, each block representing a chunk of the query-key interactions.
→ Some blocks are fully visible (colored green), meaning no elements inside are masked out and all tokens can fully attend to each other in that block.
→ Other blocks are partially masked (colored yellow), meaning only some elements inside need to be masked out and some remain visible.
→ Lastly, some blocks are completely invisible or irrelevant (depicted as white), meaning all their elements would be masked out and thus can be skipped entirely during computation.
→ To handle these different types of blocks efficiently, the paper’s FlexAttention mechanism uses a data structure called BlockMask, which records which blocks are fully unmasked, which are partially masked, and which can be completely ignored.
→ Once FlexAttention knows where the fully and partially masked regions are, it can skip unnecessary work. It applies the score modification logic (score_mod) only where needed, and applies the mask logic (mask_mod) precisely on those partial regions that require fine-grained masking.
→ By working at the level of blocks instead of individual elements, FlexAttention significantly reduces overhead. Full blocks can avoid repeated masking operations, partial blocks apply masks only where needed, and completely ignored blocks impose no computational cost at all.
→ This approach, as illustrated in the image, directly demonstrates FlexAttention’s core idea: flexible, block-level control over where and how masking and score adjustments occur. It enables efficient, customizable attention variants (such as sliding window attention) without manually rewriting or tuning the kernels.
→ In essence, the image visually conveys the heart of what FlexAttention accomplishes: turning a complex, element-level attention pattern into a block-level roadmap that is easier to traverse and more efficient to compute, all while preserving the flexibility to implement numerous attention variants without rewriting the underlying GPU kernels.
